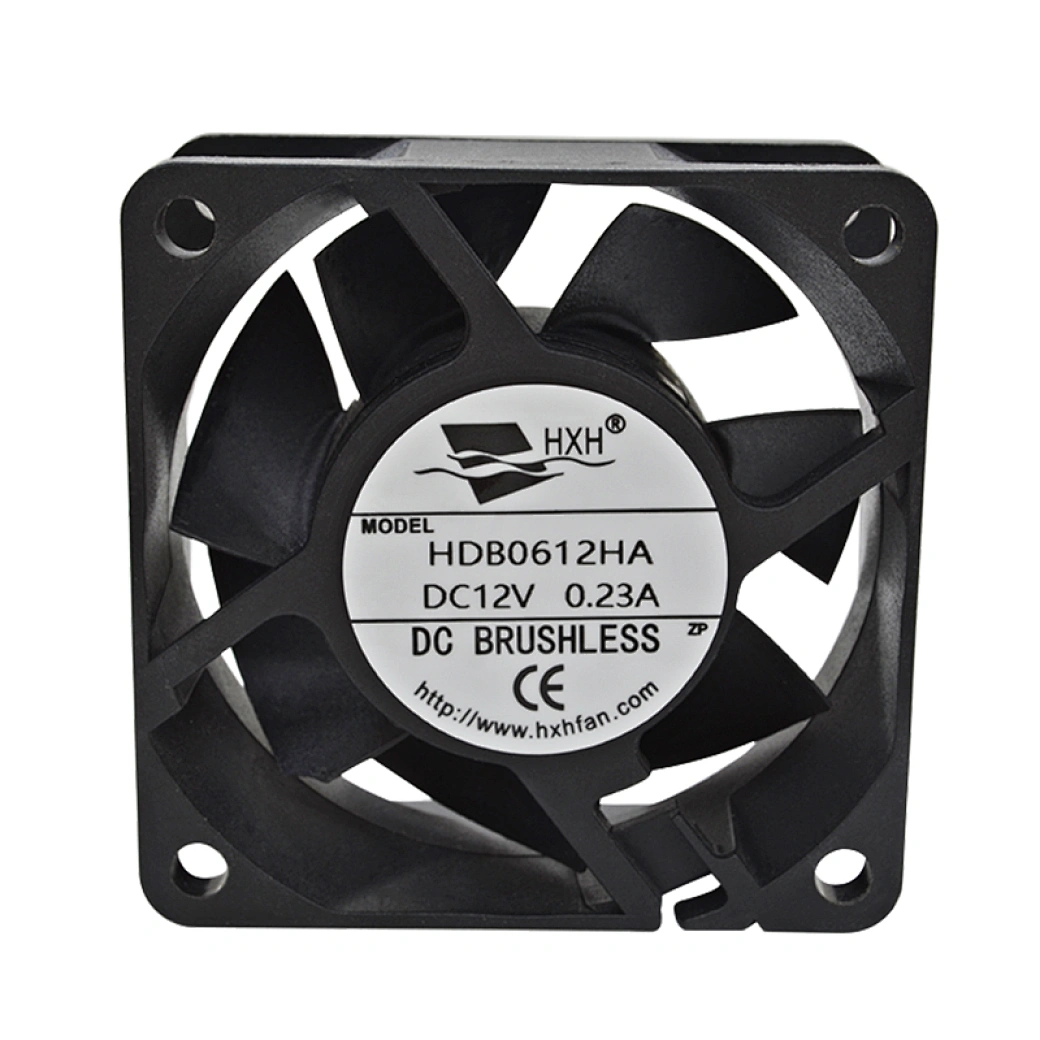

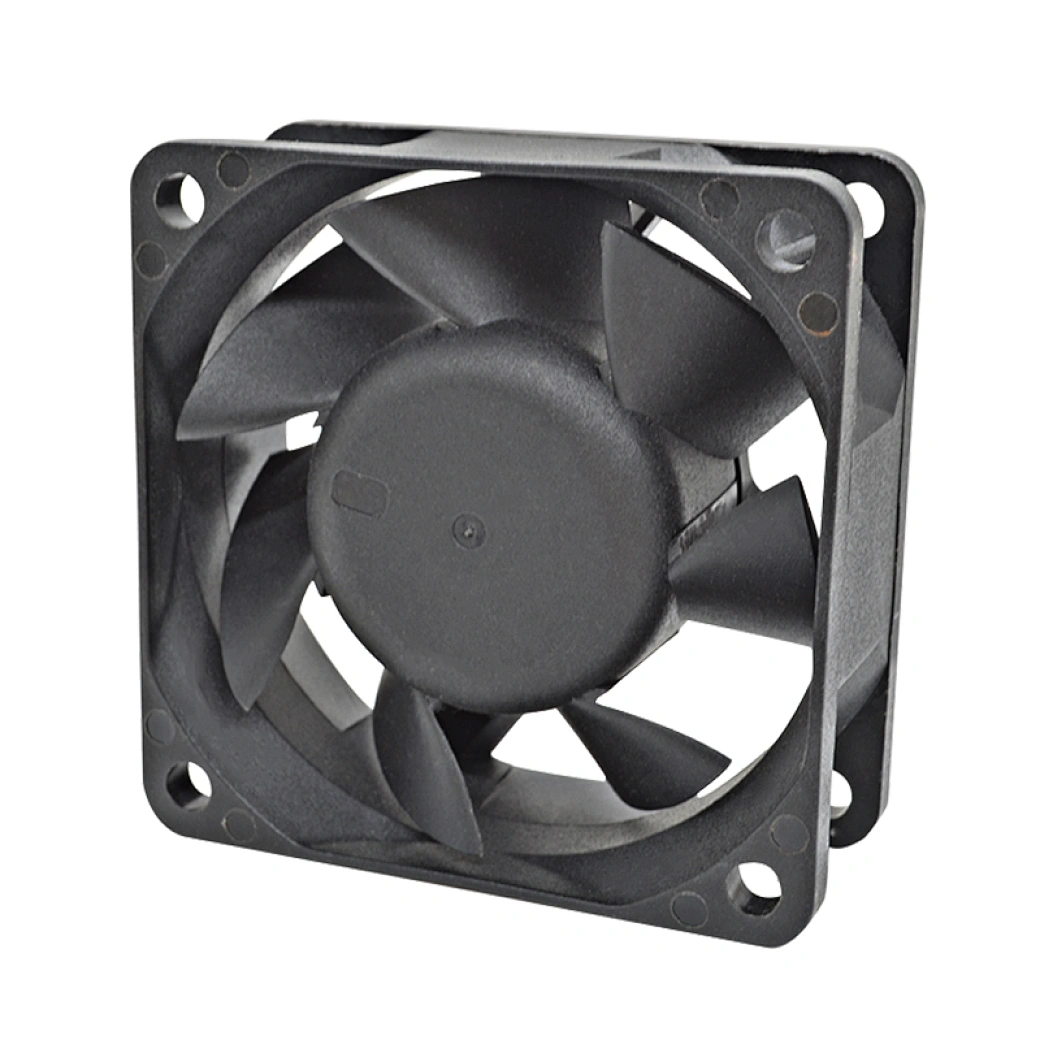

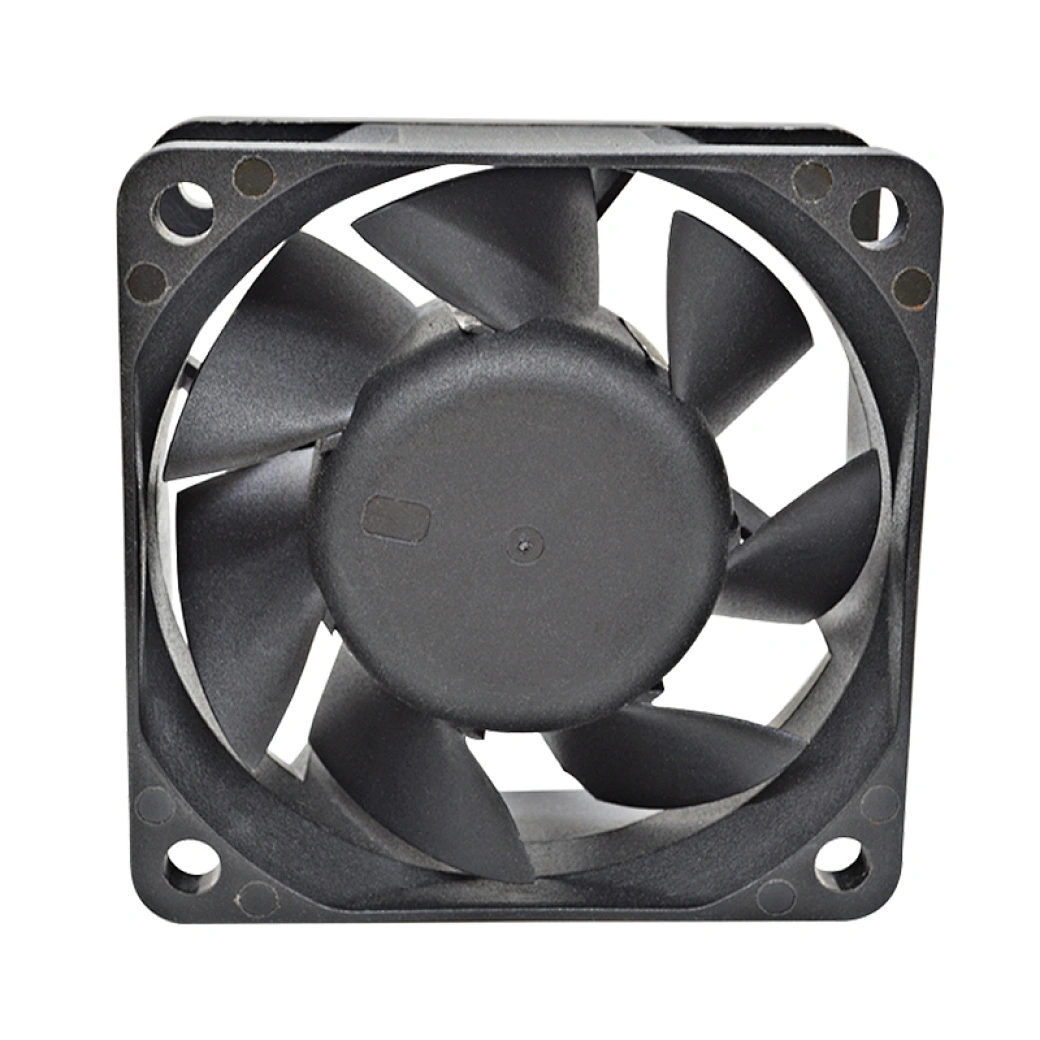

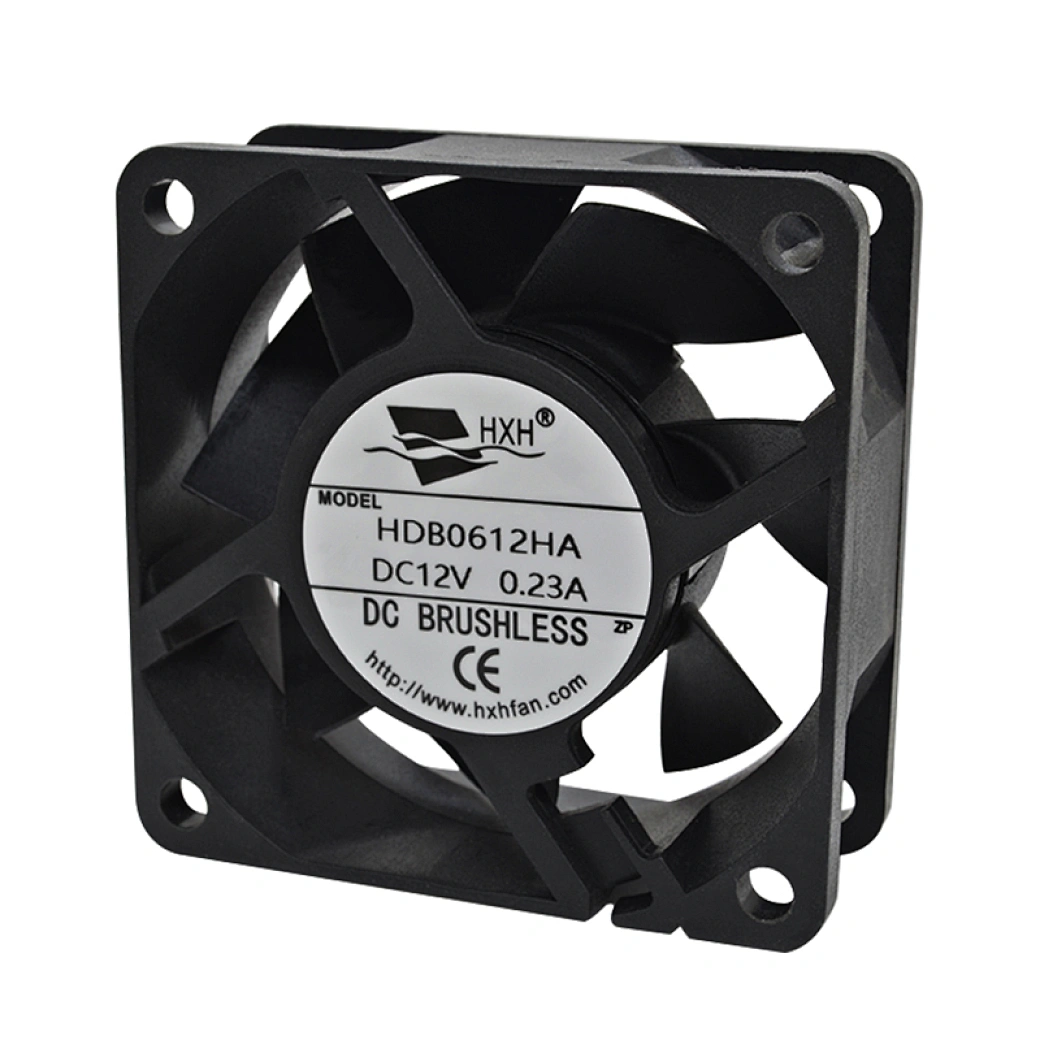

Dustproof Waterproof Fan
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V 24V
Bearing structure:Ball bearing
Product life:70,000 hours
Output function:FG function RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature:-40℃ ~75℃
As a leading radiator fan manufacturer in China, we are proud to introduce our newest product – the Dustproof Waterproof Fan, model 60x60x25mm-1. Designed with top-of-the-line features and superior quality, this fan is perfect for a wide range of applications, including air conditioning units, ventilation systems, and refrigeration equipment.
In today's competitive market, customers are looking for products that are not only durable and efficient, but also easy to use and maintain. That's where our Dustproof Waterproof Fan comes in. Equipped with a dust-proof and waterproof design, this fan is built to withstand the toughest conditions. It can easily handle high humidity and dusty environments, ensuring optimal performance for any application.
One of the key features of our Dustproof Waterproof Fan is its size. At 60x60x25mm, it is small enough to fit into tight spaces, making it ideal for use in compact electronic devices. Despite its compact size, this fan delivers powerful airflow, thanks to its high-quality ball bearing system. It is also energy-efficient, consuming minimal power while providing maximum performance.
As a leading radiator fan manufacturer, we understand the importance of quality. That's why our Dustproof Waterproof Fan is built to meet the strictest standards of quality and safety. It is CE certified, ensuring that it meets EU quality and safety standards. Additionally, it is RoHS compliant, which means that it is free of hazardous materials such as lead, mercury, and cadmium.
Whether you are looking for a fan for your air conditioning unit, ventilation system, or refrigeration equipment, our Dustproof Waterproof Fan is the perfect choice. It is built to last, delivering reliable performance under the toughest conditions. With its compact size, powerful airflow, and energy-efficient design, it is an essential component for any application.
In conclusion, as a radiator fan manufacturer, we are confident that our Dustproof Waterproof Fan is the best choice for your needs. With its durable construction, efficient performance, and compact design, it is sure to meet the demands of any application. Contact us today to learn more about our products and services.
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0612EA-1 | IP68 | Ball | 12 | 5.0 | 0.38 | 4.56 | 6000 | 0.93 | 32.70 | 10.82 | 0.43 | 47.3 |
| HDB0612UA-1 | IP68 | 5.0 | 0.27 | 3.24 | 5000 | 0.71 | 25.09 | 7.83 | 0.31 | 42.1 | ||
| HDB0612HA-1 | IP68 | 5.0 | 0.18 | 2.16 | 4000 | 0.55 | 19.60 | 5.12 | 0.20 | 37.1 | ||
| HDB0612MA-1 | IP68 | 5.0 | 0.14 | 1.68 | 3000 | 0.42 | 14.77 | 2.91 | 0.11 | 30.7 | ||
| HDB0612LA-1 | IP68 | 5.0 | 0.10 | 1.20 | 2500 | 0.35 | 12.53 | 2.03 | 0.08 | 29.7 | ||
| HDB0624EA-1 | IP68 | Ball | 24 | 12.0 | 0.25 | 6.00 | 6000 | 0.93 | 32.70 | 10.82 | 0.43 | 47.3 |
| HDB0624UA-1 | IP68 | 12.0 | 0.18 | 4.32 | 5000 | 0.71 | 25.09 | 7.83 | 0.31 | 42.1 | ||
| HDB0624HA-1 | IP68 | 12.0 | 0.12 | 2.88 | 4000 | 0.55 | 19.60 | 5.12 | 0.20 | 37.1 | ||
| HDB0624MA-1 | IP68 | 12.0 | 0.09 | 2.16 | 3000 | 0.42 | 14.77 | 2.91 | 0.11 | 30.7 | ||
| HDB0624LA-1 | IP68 | 12.0 | 0.07 | 1.68 | 2500 | 0.35 | 12.53 | 2.03 | 0.08 | 29.7 | ||
● Drone fan
● Sensor fan
● Laptop fan
● Sweeper fan
● Head mounted VR fan
● Air purifier fan
● Electric forklift fan
● Air detector fan
● High speed camera fan
● Power industry fan
● Smart toilet fan
● Refrigerator, air conditioning fan
● Medical equipment fan
● Automobile equipment cooling fan
● Cooling solutions for all machines
● Industrial equipment cooling fan
● Server and storage cooling ventilation fans
● Telecom equipment and telecom cabinet cooling fans
● Factory Automation/Processing Machine Cooling Fans
● Sports equipment cooling fan
● Treadmill cooling fan
● Dehumidifier cooling fan
● Healthcare Cooling Fan
● Cooling fan
● Commercial kitchen air cooler
● 3D printer cooling fan
● Projector cooling fan
● Copier cooling fan
● Printer cooling fan
● Coffee machine cooling fan
● Stage lighting cooling fan
Select fan bladesIngenious fan blade design and excellent material selectionkeep the cooling fan running stably.longer product lifeThe windings of our fan motors are made 100% of copper. Use high-quality wires to extend the service life of each series of fans.
PCBEnvironmental PBT Fireproof,Excellent Structure and LargeAirvilume.
Ball BearingSuper longservice life, super low noise
HXHFAN was established in Shenzhen, China in 2007 and is a comprehensive company dedicated to the research and development, production, sales, and related technology and services of cooling fans. HXHFAN is a leading manufacturer of cooling fan solutions, specializing in cooling systems. Maintain high standards in terms of quality.
We provide comprehensive cooling solutions. HXHFAN can also provide OEM/ODM services. DC cooling fans offer a variety of fan sizes, fan speeds, and voltages to meet your customized needs. The company has been focusing on the research and development, production, and sales of cooling fans, mainly producing DC/AC/EC fans, blowers, and fan covers.
HXHFAN has advanced and complete fully automated equipment, including: fully automatic winding machines, automatic air volume measurement systems, dynamic balancing machines, salt spray testing systems, noise testing systems, and other equipment. At the same time, the HXHFAN series products have obtained UL, TUV, CE, ROHS, REACH, and IP68 product certifications, and the factory has obtained IOS9001:2015 and IATE16949:2016 certifications.
HXHFAN has a passionate and elite engineering team. HXHFAN's products are widely used in fields such as network communication, medical equipment, environmental protection equipment, photovoltaic equipment, new energy equipment, automotive electronic equipment, industrial production equipment, smart home equipment, etc. We have a large number of distributors in various fields around the world. Our products are distributed around the world and have won a good reputation and trust. We expand our production costs to meet different needs, In 2011, we built our own factory and relocated from Shenzhen to Dongguan Qiaotou, with an area of 12000 square meters. Shenzhen also established an office.
After years of rapid development, HXHFAN has formed a complete quality management system. Until now, HXHFAN has a complete organizational structure, including the R&D department, engineering department, production department, quality department, procurement department, material department, administrative department, finance department, sales department, etc. HXHFAN has a strong R&D team and strong and fast production capacity.
Manufacturing Equipment
Our service
HXHFAN was established in 2007 and has more than 10 years of experience in the cooling fan industry. Our professional teams in mold and R&D departments can provide customers with technical advice and customized services.
Quality Stability & Reliability
To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA.
The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM.
Short Production Time & Prompt Delivery
HXHFAN has invested more than US$1.8 million to upgrade production facilities and testing equipment. Our production line includes fully automatic winding machines, automatic air volume measurement systems, dynamic balancing machines, salt spray testing systems, noise testing systems and other equipment.
Most importantly, up to 10 assembly lines can shorten production time that usually takes about 3 to 5 weeks.
Patent certification
1.HXHFAN complies with global standards and has passed ISO 9001:2015 and IATE16949:2016 quality system certification.
2. All our products have obtained UL, TUV, CE, ROHS, REACH, and IP68 product certifications.
Trade show
FAQS
1. What is a dustproof and waterproof fan?
Dust-proof fans, as the name suggests, are designed to prevent dust particles from accumulating inside the fan, ensuring its service life and efficient performance. Waterproof fans, on the other hand, are designed to prevent water penetration, making them ideal for outdoor or humid environments where water exposure is an issue.
2. How does the dust-proof fan work?
The anti-dust fan is equipped with a filtration system to prevent dust from entering the device. These filters act as a barrier, trapping dust particles and preventing them from entering the fan's internal components. To maintain optimal functionality, these filters must be cleaned or replaced regularly.
3. How does the waterproof fan work?
Waterproof fans are designed with special coatings, seals, and enhanced circuitry to prevent water damage. These fans are designed to withstand varying degrees of water exposure, depending on their IP (Ingress Protection) rating. The IP rating determines the fan's waterproof capabilities.
4. What are the advantages of dust-proof fans?
Dust-proof fans offer many benefits for home and industrial use:
a) Extended service life: Prevent dust from accumulating inside the fan, ensuring better performance and longer service life.
b) Improve air quality: By filtering dust particles, these fans help keep the air clean and are very beneficial for people suffering from allergies or respiratory diseases.
c) Lower maintenance requirements: Regularly cleaning the dust accumulated in traditional fans is very time-consuming; however, dust-proof fans require minimal maintenance due to their efficient filtration system.
5. What are the advantages of waterproof fans?
Waterproof fans have many advantages and are suitable for different environments:
a) Durability in harsh environments: These fans can withstand rain, splashing water, and even immersion to a certain depth, depending on their IP rating.
bVersatility: Waterproof fans are ideal for a variety of applications such as outdoor activities, swimming pools and marine environments.
c) Improved safety: By preventing water from reaching internal electrical components, these fans reduce the risk of short circuits, electric shock, or damage to adjacent equipment.
6. What is the IP rating system?
The IP rating system (Ingress Protection) classifies the degree of protection an electrical enclosure provides against the intrusion of solid particles and liquids. The IP rating consists of two digits. The first number represents the level of protection against solid particles (such as dust), while the second number represents the level of protection against liquids. For example, an IP67 rating means complete protection against dust and temporary immersion in water up to one meter deep.
7. How to choose a suitable dustproof and waterproof fan?
When choosing a dustproof or waterproof fan, consider the following factors:
a)IP Rating: Determine the required level of protection based on the fan’s intended environment.
b) Fan type and size: Choose the appropriate fan size and type to achieve efficient airflow in your specific application.
c) Noise level: Consider the fan's noise level specifications to ensure it meets your requirements.
d) Energy efficiency: Look for low-power fans to reduce energy costs and environmental impact.
8. Are dustproof and waterproof fans more expensive than standard fans?
Due to their special design and extra protection features, dustproof and waterproof fans usually cost slightly more. However, these fans offer long-term benefits by ensuring better performance, longer service life, and lower maintenance costs, making them a cost-effective option in the long run.
9. Can dustproof and waterproof fans be installed outdoors?
Yes, both dustproof and waterproof fans are suitable for outdoor installation.
10. Why should you consider investing in a dustproof and waterproof fan?
When it comes to ensuring the longevity and performance of your fan, choosing a dustproof and waterproof design is crucial. Both dust and water can harm a fan's performance and efficiency, causing reduced air flow or even complete failure. Dust can clog the fan blades and motor, causing overheating, and water can damage the fan's electrical components. Dustproof and waterproof fans are designed to prevent these problems, ensuring they can withstand harsh conditions and maintain optimal performance.
11. What is the main difference between dustproof and waterproof fans?
Dust-proof fans are specially designed to prevent dust particles from entering the fan housing. They have filters or guards that prevent dust buildup, keeping internal components clean and preventing damage. Waterproof fans, on the other hand, are designed to be waterproof, making them suitable for areas with high humidity, outdoor use, or places prone to accidental spills. Waterproof fans typically have sealed motor housings, special coatings, or waterproofing.
12.What applications are dust and waterproof fans suitable for?
Dustproof and waterproof fans are optimally utilized in a variety of applications including:
a) Industrial Environment: Industries such as manufacturing, mining and construction often experience high levels of dust or moisture in the air. Dustproof fans ensure effective cooling and ventilation while preventing dust and water from causing damage to the fan's internal components.
b) Outdoor use: Whether it is an alfresco event, an outdoor kitchen or a patio that requires an adequate airflow system, waterproof fans are ideal for these environments, protecting them from external moisture or accidental spills.
c) Bathrooms and Saunas: These areas are notorious for high humidity, which can damage a regular fan. Waterproof fans not only withstand high humidity but also provide effective ventilation to reduce humidity.
d) Agriculture and Greenhouses: Farms, agricultural facilities and greenhouses require fans that can withstand dusty and humid environments. Dustproof and waterproof fans are the perfect solution to ensure durability and longevity in such environments.
13. How to prevent damage to waterproof fans?
Dust-proof fans are equipped with filters, special grilles or guards to prevent dust particles from entering the fan housing. These components ensure that the air drawn into the fan remains clean, preventing dust from accumulating and damaging internal components such as the motor or bearings.
Waterproof fans, on the other hand, use various technologies to prevent water damage. These can include motor housing seals, silicone-based coatings or waterproof electrical connections. These features ensure that water cannot penetrate the fan and its components, keeping them dry and fully functional.
14. What factors should be considered when purchasing a dustproof and waterproof fan?
When looking for a dustproof or waterproof fan, consider the following factors:
a) IP Rating: The IP (Ingress Protection) rating indicates the level of dust and water resistance provided by the fan. The first number represents dust resistance and the second number represents water resistance. A higher IP rating (such as IP55 or IP67) means better protection.
b) Size and Airflow Capacity: Determine the appropriate fan size and airflow capacity required for your specific application. A fan that is too small or lacks adequate airflow capabilities may affect its effectiveness.
c) Energy efficiency: Look for fans with features like energy-saving motors or variable speed controls. This ensures long-term cost savings while minimizing environmental impact.
15. What is unique about dustproof and waterproof fans?
Our dustproof and waterproof fans are specifically designed to withstand harsh environments, making them highly reliable and durable. Unlike traditional fans, these models are equipped with advanced dust and water-resistant technology to effectively prevent the entry of dirt, dust particles, and other contaminants. This ensures optimal performance and extends the life of the fan.
16. How do dustproof and waterproof fans improve air quality?
Dustproof and waterproof fans play a key role in improving air quality by effectively filtering dust, allergens and other tiny particles. These fans are equipped with specialized air filters and blades designed to capture the finest particles, ensuring that the air circulated is clean and free of pollutants. This is particularly beneficial for people with respiratory conditions or allergies, creating a healthier, more comfortable environment.
17. Can waterproof fans withstand extreme temperatures?
Yes, our dust and waterproof fans are tested and built to withstand extreme temperature conditions. They are made from high-quality materials and include heat-resistant components that can withstand both high and low temperatures. This allows our fans to operate efficiently in environments with extreme temperature swings without compromising their performance or durability.
18. Are waterproof fans energy efficient?
certainly! Our dustproof and waterproof fans feature an energy-efficient design to ensure optimal performance while consuming minimal power. These fans utilize advanced motor technology and smart control mechanisms to deliver powerful airflow at low energy consumption levels. By investing in our energy-efficient blowers, you not only save on utility costs but also contribute to environmental sustainability.
19. Can waterproof fans be customized according to specific needs?
Yes, we offer customizable options to customize dustproof and waterproof fans to your unique requirements. We understand that every industry and application presents its own set of challenges, and we are committed to providing solutions that address these challenges. With different sizes, airflow options, mounting configurations and control features, we can customize our fans to enhance their functionality and integrate within your specific environment.
20. What is the certification process for waterproof fans?
Certification of dustproof and waterproof fans is carried out by independent regulatory agencies such as the International Electrotechnical Commission (IEC) and the National Electrical Manufacturers Association (NEMA). These organizations set standards and tests that manufacturers must adhere to in order to receive certification. The most common certifications for dustproof fans are determined by an IP (Ingress Protection) rating, followed by a number indicating the level of dust and water resistance.
21. What are the differences in protection levels and what do they mean?
The IP rating determines how protected a device is from foreign objects (including dust) and water. The IP rating consists of two digits, each of which has a meaning. The first number ranges from 0 to 6, which represents the level of protection against solid particles, with 0 indicating no protection and 6 indicating complete protection. The second digit ranges from 0 to 9, representing the level of protection against liquids, where 0 means no protection and 9 means protection against high-pressure jets.
22.What should be the IP rating of a dustproof fan?
The IP rating of a dustproof fan depends on the environment in which it is used. For most indoor environments, IP rating 5 or 6 is usually sufficient for dust protection. However, if the fan will be used in a dusty area, such as a construction site, an IP rating of 6 is recommended. It is important to choose a fan with the appropriate IP rating to ensure optimal performance.
23. What IP rating should I choose for a waterproof fan?
Similar to dustproof fans, the IP rating of waterproof fans varies depending on the environment. For basic protection against water splashes and spills, an IP rating of 4 or 5 is sufficient. However, in environments where fans are exposed to heavy rain or high-pressure jets, IP rating 6 or higher should be preferred. When choosing the IP rating of a waterproof fan, specific environmental conditions must be considered.
24. What are the popular industries that use a large number of dustproof and waterproof fans?
Dustproof and waterproof fans are used in various industries. Some prominent examples include construction sites, mining operations, manufacturing facilities, outdoor activities, marine environments, and agricultural environments. These industries have specific requirements for ventilation and cooling systems, requiring the use of durable and resilient dust-proof and waterproof fans.
25. What maintenance methods can ensure the service life of dustproof and waterproof fans?
Yes, regular maintenance is crucial to the longevity of your dust and waterproof fan. Regularly cleaning the fan with a soft brush or compressed air will help remove accumulated dust and debris. It’s also important to check the fan’s seals and gaskets for any signs of damage or wear. Following the manufacturer's maintenance and cleaning guidelines will ensure that your fan continues to perform optimally over time.
