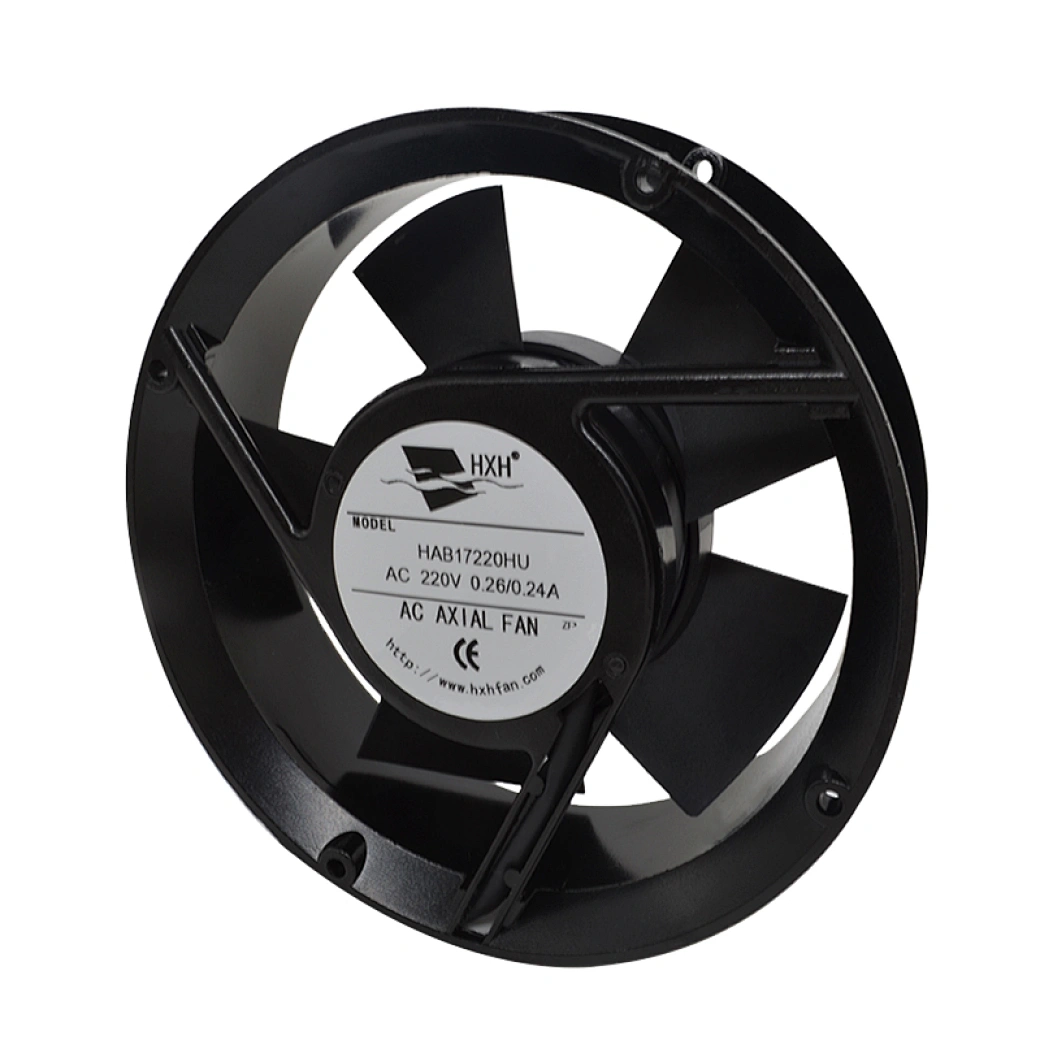

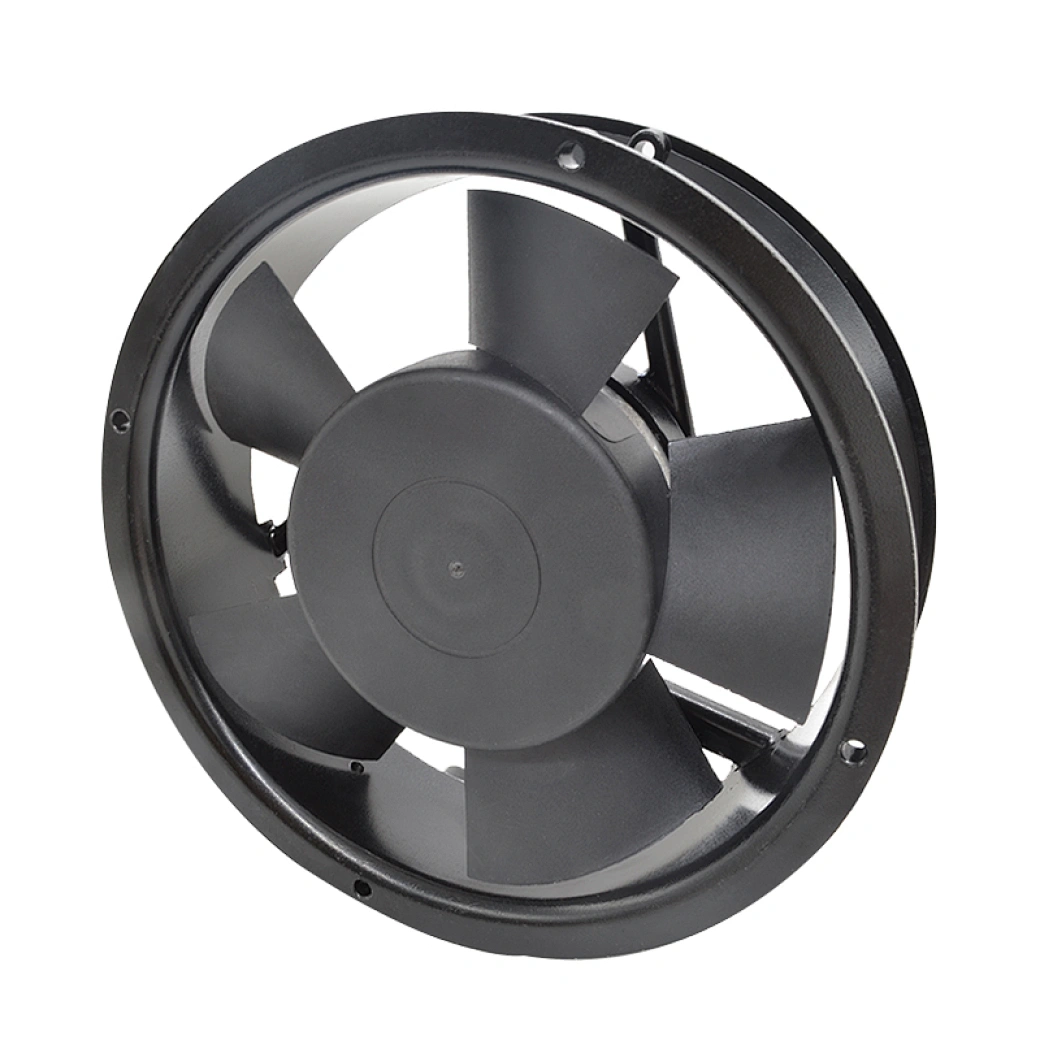

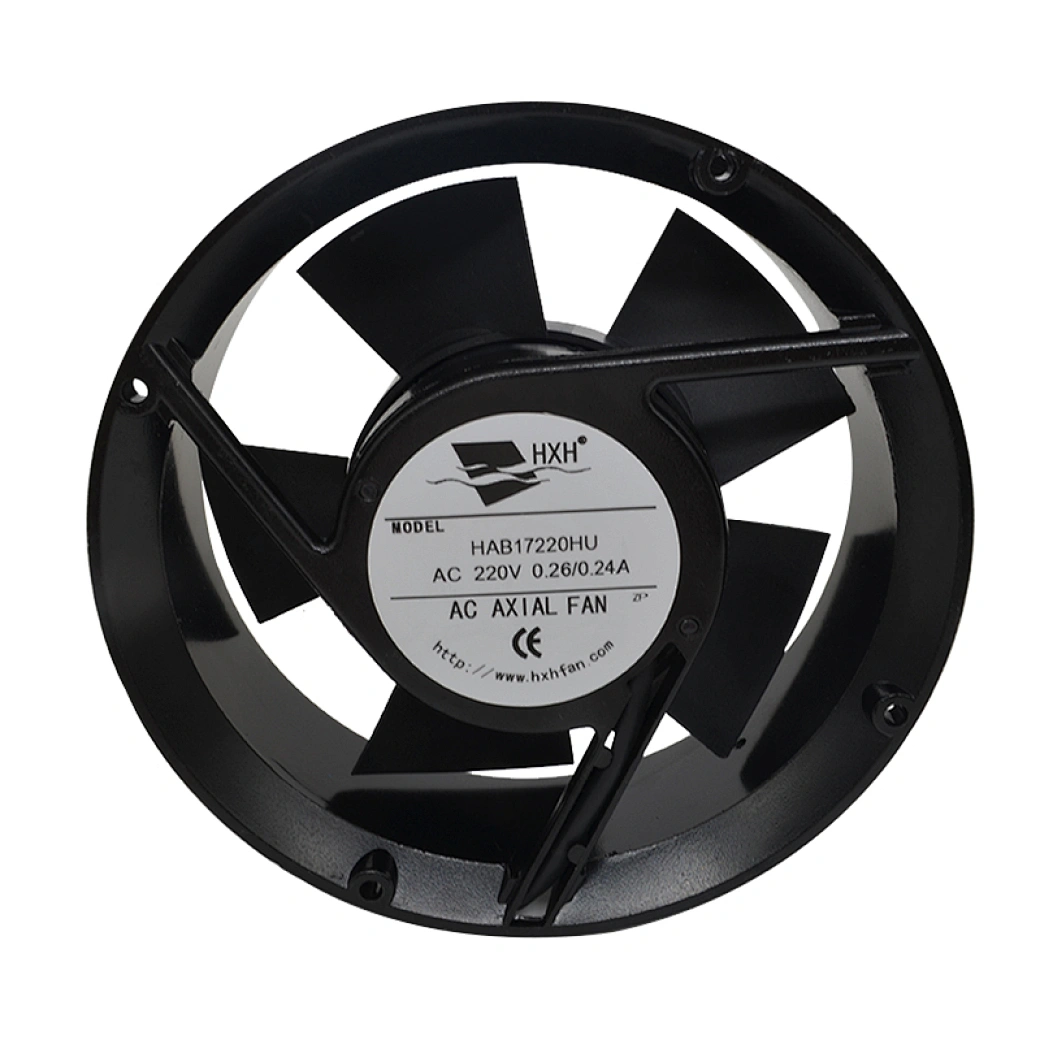

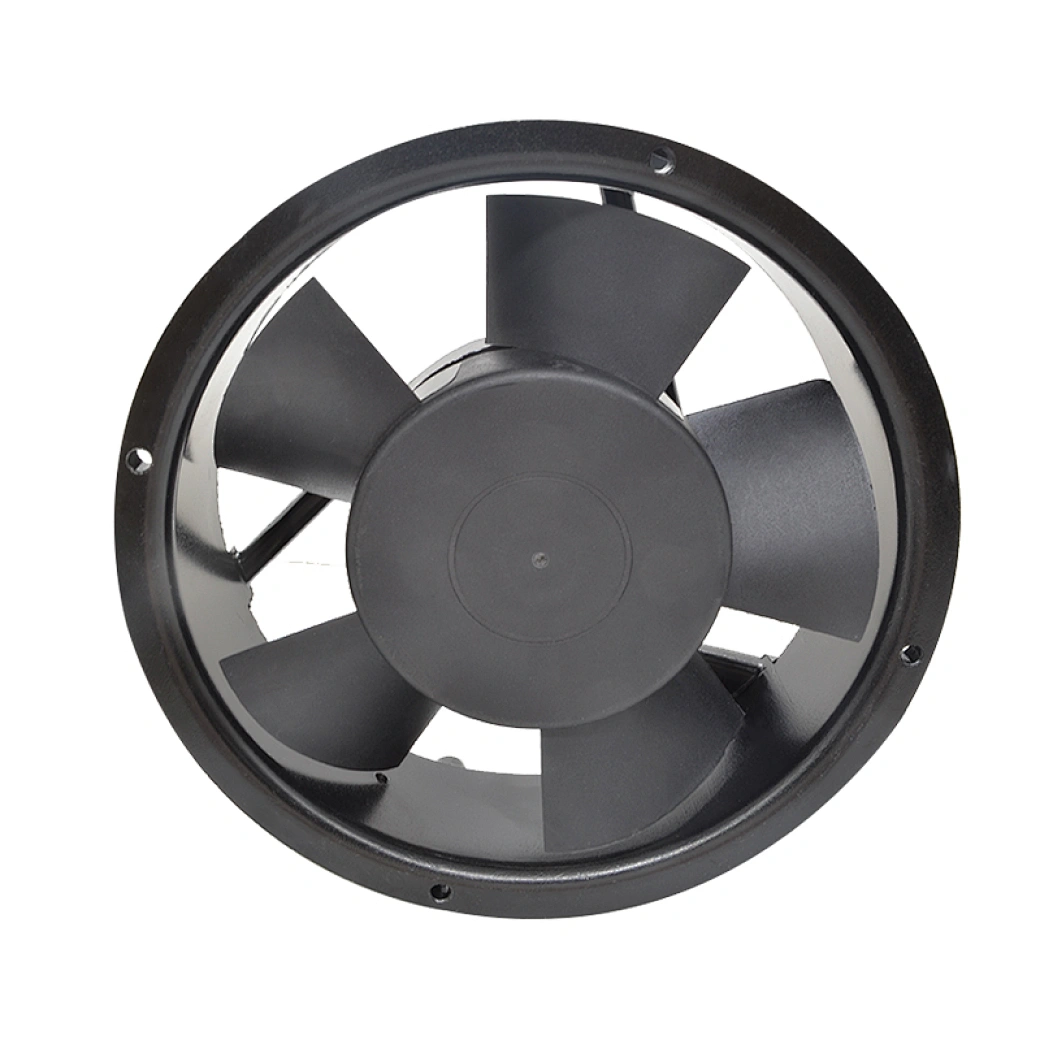

AC axial fan
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage:110V 220V
Bearing structure:Oil bearing, ball bearing
Product life:30,000 hours, 70,000 hours
Output function:FG function
Operating temperature: -10℃ ~70℃
Storage temperature:-40℃ ~75℃
As a trusted DC cooling fan manufacturer in China, we take pride in providing high-quality AC AC fans that can meet the varying demands of our clients. Our latest product, the AC AC fan model 172x150x51mm-2, is no exception.
Designed to deliver optimal cooling performance, this fan is equipped with a range of advanced features that set it apart from other models in the market. With its impressive air flow rate of up to 350m3/hour, this fan can effectively cool down any space, from small server rooms to large industrial facilities.
One of the key benefits of this fan is its energy efficiency. We understand that our clients are looking for products that can help them reduce their energy consumption and save costs over time. That's why we have optimized this fan to provide superior cooling power while consuming less energy. Thanks to its efficient design, this fan can help you lower your energy bills without compromising on performance.
In addition to its energy efficiency, this fan is built to last. We use only the highest-quality materials in its construction, ensuring that it can withstand the toughest environments and work reliably for many years. Whether you need a cooling solution for a hot and humid environment or a dusty and harsh setting, this fan has the durability to deliver optimal performance day in and day out.
Of course, as a DC cooling fan manufacturer, we know that our clients require more than just high-quality products. They also need reliable support and service to ensure that their cooling system is always up and running. That's why we've committed ourselves to providing exceptional customer service at every stage, from initial consultation to ongoing support.
Whether you need technical advice, troubleshooting assistance or help selecting the right cooling fan for your specific needs, our team of experts is ready and willing to assist you. We pride ourselves on being a true partner to our clients, working closely with them to deliver the solutions they need to keep their operations running smoothly.
In conclusion, if you're looking for a top-quality AC AC fan that can deliver impressive cooling performance, exceptional energy efficiency, and long-lasting durability, look no further than our AC AC fan model 172x150x51mm-2. As a trusted DC cooling fan manufacturer in China, we're here to provide you with the high-quality products and reliable support you need to ensure success. Contact us today to learn more!

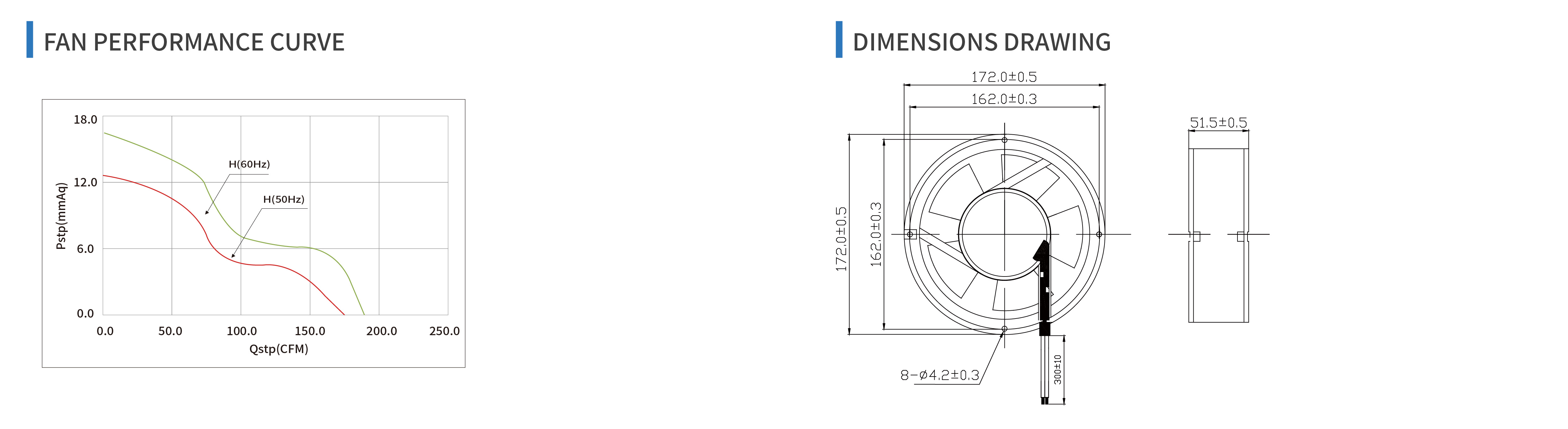

| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB17110HU-2 | W/T | Ball | 110 | 100-125 | 50/60 | 0.51/0.47 | 2500/2800 | 4.95/5.38 | 175/190 | 12.7/16.5 | 0.50/0.65 | 55/60 |
| HAB17220HU-2 | W/T | Ball | 220 | 200-240 | 50/60 | 0.26/0.24 | 2500/2800 | 4.95/5.38 | 175/190 | 12.7/16.5 | 0.50/0.65 | 55/60 |
● Drone fan
● Sensor fan
● Laptop fan
● Sweeper fan
● Head mounted VR fan
● Air purifier fan
● Electric forklift fan
● Air detector fan
● High speed camera fan
● Power industry fan
● Smart toilet fan
● Refrigerator, air conditioning fan
● Medical equipment fan
● Automobile equipment cooling fan
● Cooling solutions for all machines
● Industrial equipment cooling fan
● Server and storage cooling ventilation fans
● Telecom equipment and telecom cabinet cooling fans
● Factory Automation/Processing Machine Cooling Fans
● Sports equipment cooling fan
● Treadmill cooling fan
● Dehumidifier cooling fan
● Healthcare Cooling Fan
● Cooling fan
● Commercial kitchen air cooler
● 3D printer cooling fan
● Projector cooling fan
● Copier cooling fan
● Printer cooling fan
● Coffee machine cooling fan
● Stage lighting cooling fan
Select fan bladesIngenious fan blade design and excellent material selectionkeep the cooling fan running stably.longer product lifeThe windings of our fan motors are made 100% of copper. Use high-quality wires to extend the service life of each series of fans.
PCBEnvironmental PBT Fireproof,Excellent Structure and LargeAirvilume.
Ball BearingSuper longservice life, super low noise
HXHFAN was established in Shenzhen, China in 2007 and is a comprehensive company dedicated to the research and development, production, sales, and related technology and services of cooling fans. HXHFAN is a leading manufacturer of cooling fan solutions, specializing in cooling systems. Maintain high standards in terms of quality.
We provide comprehensive cooling solutions. HXHFAN can also provide OEM/ODM services. DC cooling fans offer a variety of fan sizes, fan speeds, and voltages to meet your customized needs. The company has been focusing on the research and development, production, and sales of cooling fans, mainly producing DC/AC/EC fans, blowers, and fan covers.
HXHFAN has advanced and complete fully automated equipment, including: fully automatic winding machines, automatic air volume measurement systems, dynamic balancing machines, salt spray testing systems, noise testing systems, and other equipment. At the same time, the HXHFAN series products have obtained UL, TUV, CE, ROHS, REACH, and IP68 product certifications, and the factory has obtained IOS9001:2015 and IATE16949:2016 certifications.
HXHFAN has a passionate and elite engineering team. HXHFAN's products are widely used in fields such as network communication, medical equipment, environmental protection equipment, photovoltaic equipment, new energy equipment, automotive electronic equipment, industrial production equipment, smart home equipment, etc. We have a large number of distributors in various fields around the world. Our products are distributed around the world and have won a good reputation and trust. We expand our production costs to meet different needs, In 2011, we built our own factory and relocated from Shenzhen to Dongguan Qiaotou, with an area of 12000 square meters. Shenzhen also established an office.
After years of rapid development, HXHFAN has formed a complete quality management system. Until now, HXHFAN has a complete organizational structure, including the R&D department, engineering department, production department, quality department, procurement department, material department, administrative department, finance department, sales department, etc. HXHFAN has a strong R&D team and strong and fast production capacity.
Manufacturing Equipment
Our service
HXHFAN was established in 2007 and has more than 10 years of experience in the cooling fan industry. Our professional teams in mold and R&D departments can provide customers with technical advice and customized services.
Quality Stability & Reliability
To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA.
The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM.
Short Production Time & Prompt Delivery
HXHFAN has invested more than US$1.8 million to upgrade production facilities and testing equipment. Our production line includes fully automatic winding machines, automatic air volume measurement systems, dynamic balancing machines, salt spray testing systems, noise testing systems and other equipment.
Most importantly, up to 10 assembly lines can shorten production time that usually takes about 3 to 5 weeks.
Patent certification
1.HXHFAN complies with global standards and has passed ISO 9001:2015 and IATE16949:2016 quality system certification.
2. All our products have obtained UL, TUV, CE, ROHS, REACH, and IP68 product certifications.
Trade show
FAQS
1. How does an AC cooling fan work?
AC cooling fans use the magnetic field generated by electric current to interact with the permanent magnets on the shaft, causing the shaft and fan blades to rotate together to generate wind force. Normally, current, supplied by a power source, flows in the windings, creating a magnetic field. AC voltage causes the magnetic field to change direction and causes an interaction force between the magnetic field and the permanent magnet. The rotation of the fan blades will drive the surrounding air to form airflow, thereby taking away the heat and achieving a cooling effect.
2. Why is it important to maintain AC cooling fans?
Maintaining your AC cooling fan is crucial for a number of reasons. When a fan becomes dirty or clogged with debris, its efficiency is significantly reduced, resulting in reduced overall system performance. Additionally, a dirty fan can cause ductwork problems, leading to uneven cooling or hot spots in your home. Routine maintenance like cleaning or replacing the air filter can help ensure proper airflow and prevent unnecessary stress on your air conditioning system, potentially extending its lifespan. Regular professional maintenance is necessary to resolve any fan-related issues before they escalate and reduce the cooling capabilities of your air conditioner.
3. How to solve common problems with AC cooling fans?
A. Fan Not Running: If your AC cooling fan won't start, it may indicate a problem with its motor or capacitor. Check for any loose connections or damaged wires. If the fan still won't start, it is recommended to contact a certified technician to diagnose and repair the problem.
B. Fan running but not cooling: This problem can be caused by a variety of factors, including a faulty fan motor, a dirty condenser coil, or a low refrigerant level. Regular cleaning of the condenser coils and ensuring proper refrigerant levels are maintained are crucial to preventing this problem. If the problem persists, it’s best to consult an HVAC professional to identify and resolve the root cause.
C. Strange noises coming from the fan: Unusual noises coming from the fan, such as grinding, squealing, or banging, may indicate loose or worn components within the motor. Ignoring these noises can lead to complete motor failure. Contact a professional technician as soon as possible to avoid further damage.
4.Can the AC cooling fan be upgraded or replaced?
Yes, AC cooling fans can be upgraded or replaced to improve the overall efficiency and performance of your cooling system. Upgrading to a more energy-efficient fan can reduce energy consumption and provide better airflow. However, before making any upgrades, you must consult a professional to ensure compatibility and optimal performance. If your existing fan is beyond repair or is clearly outdated, replacing it with a new one may be a viable solution. Professional technicians will evaluate your system specifications and recommend the best fan for your specific needs.
5.What is the function of AC cooling fan?
The AC cooling fan is responsible for drawing air into the condenser coil, which helps dissipate the heat absorbed from the unit. It prevents the device from overheating and maintains its efficiency.
6. How to determine whether the cooling fan is faulty?
There are several signs that the cooling fan is faulty. If you notice reduced airflow, loud noises, or your air conditioning unit frequently shuts off due to overheating, your cooling fan may not be working properly. In this case, inspection and repair must be carried out by professionals.
7. What routine maintenance tasks can extend the service life of the cooling fan?
Yes, regular maintenance is critical to the longevity of your cooling fan. Regularly cleaning or replacing your air filter can help prevent dust buildup that can block airflow and put stress on your fan motor. Keeping the area around the equipment clear of clutter or vegetation will also ensure proper air circulation.
8. How often should cooling fans be inspected and maintained?
It is recommended that yours be inspected and maintained at least once a year, preferably before the start of summer. Regular maintenance ensures optimal performance and helps detect potential problems before they become major problems.
9. What causes the cooling fan to stop working?
A cooling fan may fail for a variety of reasons. This could be a faulty motor, a damaged fan blade, an electrical issue, or a problem with the fan relay switch. Additionally, a lack of regular maintenance, such as neglecting to clean the fan or failing to replace worn components, can also lead to fan failure.
10. Can cooling fan problems be prevented?
While it's not always possible to avoid all problems, proper care and maintenance can significantly reduce the likelihood of cooling fan failure. Regularly cleaning or replacing your air filter, keeping your equipment clean, and scheduling professional repairs can go a long way in ensuring smooth operation.
11.Besides cooling fans, are there any other common AC issues?
Yes, devices can experience various other issues. Some common problems include refrigerant leaks, compressor failure, thermostat failure, and electrical faults. Problems with the evaporator coil or condenser can also adversely affect the cooling performance of your air conditioning unit. Prompt resolution of these issues by consulting an expert is critical to preventing further damage.
