Model No: 80x80x25mm-2

FRAMELESS FAM

Size: 80x80x25mm-2
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V 24V
Bearing structure:Oil Bearing Ball Bearing
Product life:30,000 hours 70,000 hours
Output function:FG function RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature:-40℃ ~75℃

Quantity :

add to cart

Contact Now

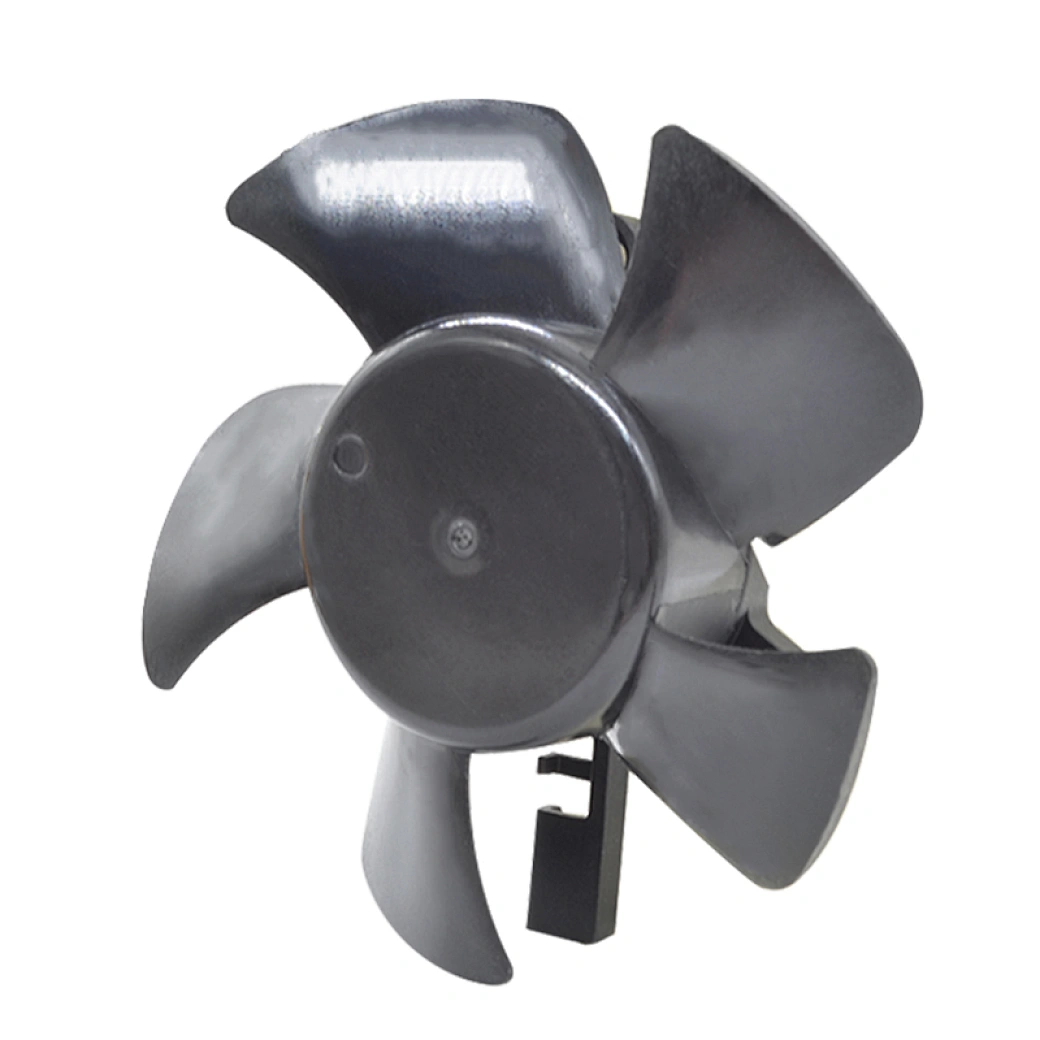

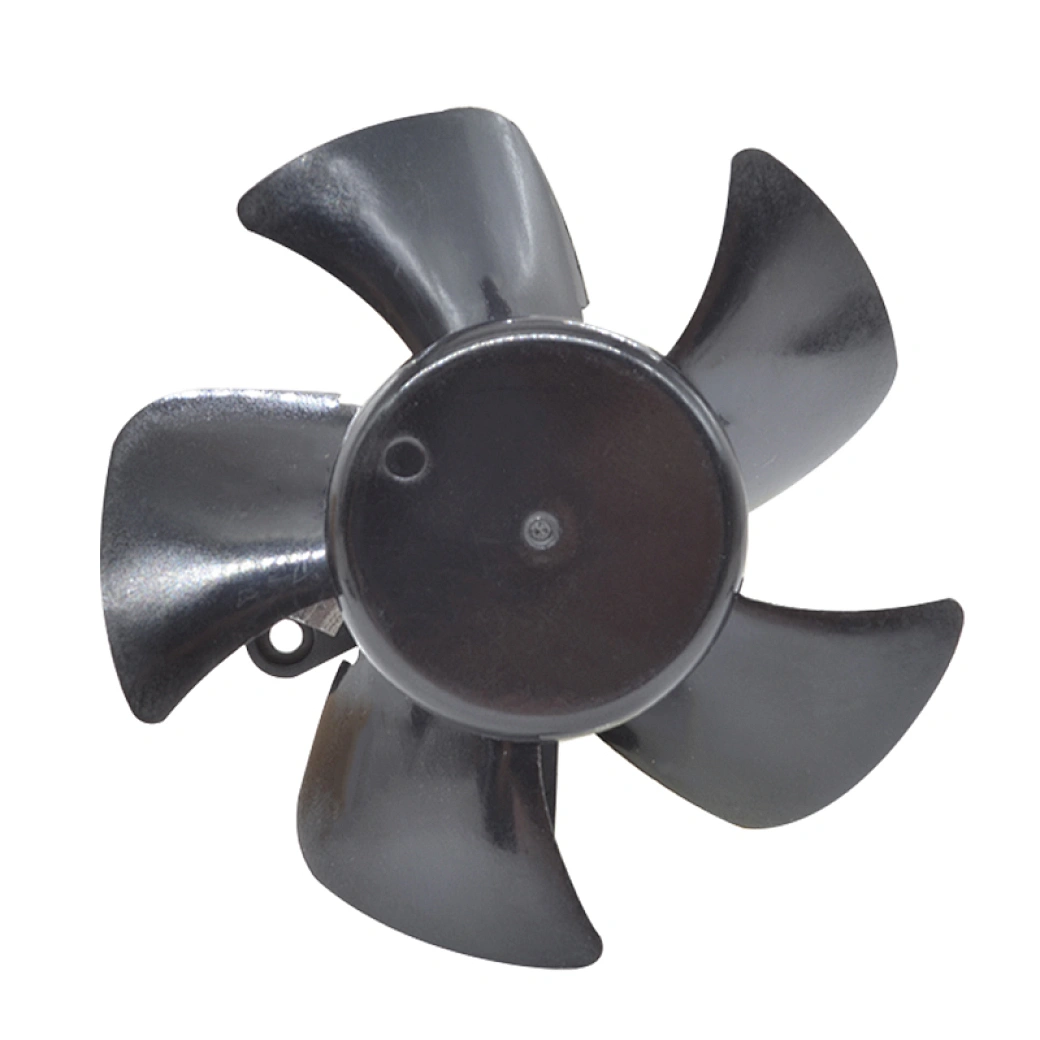

FRAMELESS FAM 80x80x25mm-2

Welcome to our frameless fan manufacturer website where we take pride in providing high-quality cooling fans. Our latest model, the 80x80x25mm-2 frameless fan, is an essential choice for anyone seeking an efficient and reliable cooling solution.

As a leading Chinese manufacturer of cooling fans, we understand that a reliable and efficient cooling system is a top priority for all of our customers. Our 80x80x25mm-2 frameless fan is designed to provide optimal cooling performance while reducing noise and power consumption.

This frameless fan can easily withstand high temperatures and provide continuous cooling even in harsh environments. Additionally, the unique blade design in our model ensures high airflow, making it an ideal choice for various heat management applications.

Whether you are searching for a cooling fan for your computer, server or other electronic devices, our 80x80x25mm-2 frameless fan is an excellent choice for a wide range of applications. Our cooling fan manufacturer understands the importance of high performance, affordability, and reliability, and this is what we provide.

At our Chinese cooling fan manufacturing company, we prioritize our customers by providing excellent customer service, high-quality products, and affordable prices. Through our advanced production technology and strict quality control management, we guarantee the highest level of customer satisfaction.

In conclusion, our 80x80x25mm-2 frameless fan is a reliable and energy-efficient solution to your heat management needs. As a trusted Chinese manufacturer of cooling fans, we pride ourselves in providing products of superior quality that exceed customer expectations. Contact us to learn more about our cooling fan offerings.

Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HYB0812VA		Ball	12	6.0	0.85	10.20	6500	2.07	72.99	15.39	0.61	50.2
HYB0812EA				6.0	0.70	8.40	6000	1.89	66.91	13.19	0.52	46.5
HYB0812UA				6.0	0.55	6.60	5000	1.55	54.61	9.12	0.36	41.0

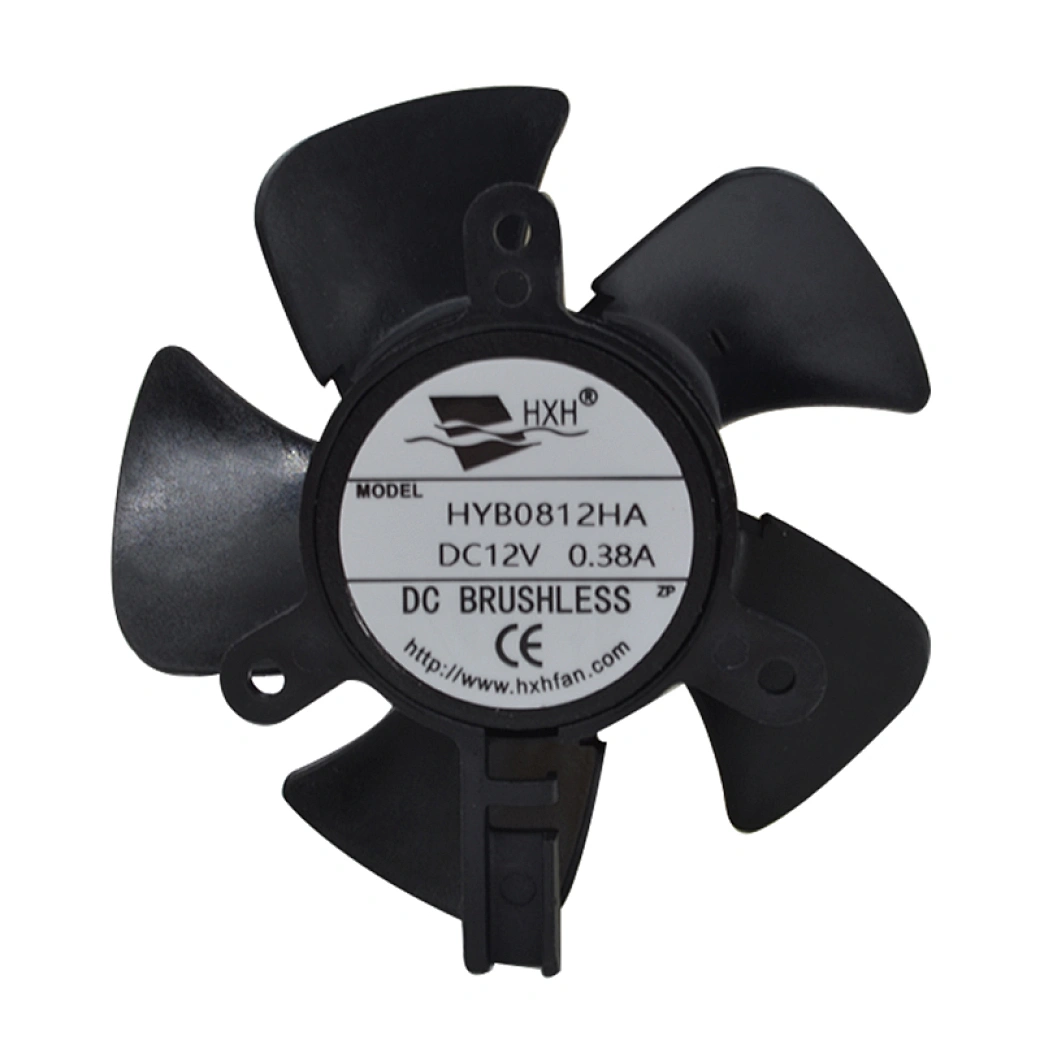

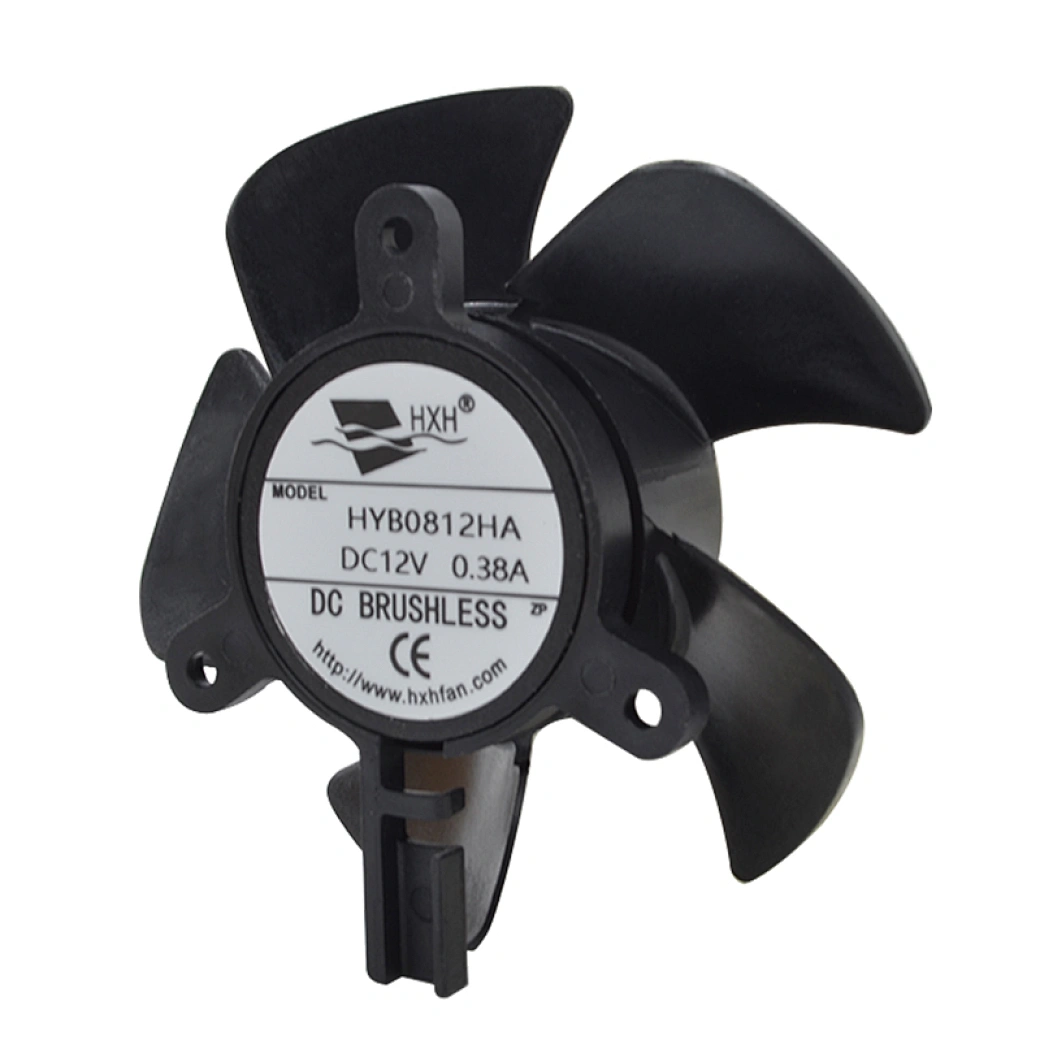

HYB0812HA				6.0	0.38	4.56	4000	1.20	42.58	5.86	0.23	35.8
HYB0812MA				9.0	0.28	3.36	3000	0.91	32.20	3.50	0.14	28.1
HYB0812LA				9.0	0.16	1.92	2000	0.64	22.64	1.82	0.07	18.4
HYB0824VA		Ball	24	12.0	0.55	13.20	6500	2.07	72.99	15.39	0.61	50.2
HYB0824EA				12.0	0.40	9.60	6000	1.89	66.91	13.19	0.52	46.5
HYB0824UA				12.0	0.30	7.20	5000	1.55	54.61	9.12	0.36	41.0
HYB0824HA				12.0	0.14	3.36	4000	1.20	42.58	5.86	0.23	35.8
HYB0824MA				18.0	0.09	2.16	3000	0.91	32.20	3.50	0.14	28.1
HYB0824LA				18.0	0.06	1.44	2000	0.64	22.64	1.82	0.07	18.4

Application areas
● Drone fan
● Sensor fan
● Laptop fan
● Sweeper fan
● Head mounted VR fan
● Air purifier fan
● Electric forklift fan
● Air detector fan
● High speed camera fan
● Power industry fan
● Smart toilet fan
● Refrigerator, air conditioning fan
● Medical equipment fan
● Automobile equipment cooling fan
● Cooling solutions for all machines
● Industrial equipment cooling fan
● Server and storage cooling ventilation fans
● Telecom equipment and telecom cabinet cooling fans
● Factory Automation/Processing Machine Cooling Fans
● Sports equipment cooling fan
● Treadmill cooling fan
● Dehumidifier cooling fan
● Healthcare Cooling Fan
● Cooling fan
● Commercial kitchen air cooler
● 3D printer cooling fan
● Projector cooling fan
● Copier cooling fan
● Printer cooling fan
● Coffee machine cooling fan
● Stage lighting cooling fan

Select fan blades

Ingenious fan blade design and excellent material selectionkeep the cooling fan running stably.

longer product life

The windings of our fan motors are made 100% of copper. Use high-quality wires to extend the service life of each series of fans.

PCB

Environmental PBT Fireproof,Excellent Structure and LargeAirvilume.

Ball Bearing

Super longservice life, super low noise

Company Profile

HXHFAN was established in Shenzhen, China in 2007 and is a comprehensive company dedicated to the research and development, production, sales, and related technology and services of cooling fans. HXHFAN is a leading manufacturer of cooling fan solutions, specializing in cooling systems. Maintain high standards in terms of quality.
We provide comprehensive cooling solutions. HXHFAN can also provide OEM/ODM services. DC cooling fans offer a variety of fan sizes, fan speeds, and voltages to meet your customized needs. The company has been focusing on the research and development, production, and sales of cooling fans, mainly producing DC/AC/EC fans, blowers, and fan covers.
HXHFAN has advanced and complete fully automated equipment, including: fully automatic winding machines, automatic air volume measurement systems, dynamic balancing machines, salt spray testing systems, noise testing systems, and other equipment. At the same time, the HXHFAN series products have obtained UL, TUV, CE, ROHS, REACH, and IP68 product certifications, and the factory has obtained IOS9001:2015 and IATE16949:2016 certifications.
HXHFAN has a passionate and elite engineering team. HXHFAN's products are widely used in fields such as network communication, medical equipment, environmental protection equipment, photovoltaic equipment, new energy equipment, automotive electronic equipment, industrial production equipment, smart home equipment, etc. We have a large number of distributors in various fields around the world. Our products are distributed around the world and have won a good reputation and trust. We expand our production costs to meet different needs, In 2011, we built our own factory and relocated from Shenzhen to Dongguan Qiaotou, with an area of 12000 square meters. Shenzhen also established an office.
After years of rapid development, HXHFAN has formed a complete quality management system. Until now, HXHFAN has a complete organizational structure, including the R&D department, engineering department, production department, quality department, procurement department, material department, administrative department, finance department, sales department, etc. HXHFAN has a strong R&D team and strong and fast production capacity.

Manufacturing Equipment

Our service

HXHFAN was established in 2007 and has more than 10 years of experience in the cooling fan industry. Our professional teams in mold and R&D departments can provide customers with technical advice and customized services.

Our service

Quality Stability & Reliability

To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA.
The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM. Cooling fan testing equipment

Short Production Time & Prompt Delivery

HXHFAN has invested more than US$1.8 million to upgrade production facilities and testing equipment. Our production line includes fully automatic winding machines, automatic air volume measurement systems, dynamic balancing machines, salt spray testing systems, noise testing systems and other equipment.
Most importantly, up to 10 assembly lines can shorten production time that usually takes about 3 to 5 weeks. Production lead time

Patent certification

1.HXHFAN complies with global standards and has passed ISO 9001:2015 and IATE16949:2016 quality system certification.

2. All our products have obtained UL, TUV, CE, ROHS, REACH, and IP68 product certifications.

Trade show

FAQS

1. What is a frameless cooling fan?

Frameless cooling fans are metal or plastic frames designed to hold the cooling fan in place. They are commonly used in electronic equipment such as computers, laptops, gaming consoles, and servers to prevent excessive heat build-up. Anchor frameless cooling fans to the components that generate the most heat for efficient cooling.

2. Why is frameless cooling fan important?

Frameless cooling fans are crucial as they contribute to the proper operation and longevity of your electronic devices. Ensuring consistent airflow around the heating component helps prevent potential damage from thermal throttling and overheating. Use a frameless cooling fan installation for optimal cooling performance and extended electronic component life.

3. Do all electronic devices need frameless cooling fans?

Not all electronic devices require frameless cooling fans. Devices that generate large amounts of heat, such as high-performance CPUs or graphics cards, often have cooling fans that require frameless cooling. However, devices that generate less heat, such as smartphones or tablets, may rely on passive cooling mechanisms such as heat pipes or thermal pads, eliminating the need for frameless cooling fans.

4. What should you consider when choosing a frameless cooling fan?

When choosing a frameless cooling fan, you should consider the following key factors:
a) Size and Compatibility: Make sure the bracket is compatible with your device and the cooling fan you plan to connect it to. Measure the available space and determine the required bracket size accordingly.
b) Material: Choose a stand made of high-quality materials, such as aluminum or sturdy plastic. These materials offer better durability and improved heat dissipation capabilities.
c) Mounting options: Look for brackets that offer a variety of mounting options so you can position the fan for optimal airflow. Some stands offer adjustable angle and swivel capabilities for added flexibility.
d) Noise Reduction: Consider mounts with noise reduction features or shock absorbing pads. These features reduce noise levels in electronic equipment and prevent vibration resonance.

5. Is the frameless cooling fan compatible with all cooling fans?

Frameless cooling fans are designed with universal compatibility in mind. They can be used with almost any frameless cooling fan as long as the cooling fan you choose is compatible with your device. However, careful inspection of specifications and dimensions is crucial to ensure a correct fit.

6. Can frameless cooling fans help reduce cooling fan noise levels?

Although frameless cooling fans are mainly used for installation and positioning, they can indirectly help reduce noise. Frameless cooling fans can help minimize noise levels by holding the fan properly in place and reducing vibration. Additionally, choose a frameless cooling fan with built-in noise reduction or consider purchasing additional noise reduction accessories to further reduce noise.

7. How to clean the frameless cooling fan?

Keeping your frameless cooling fan clean is important to maintain optimal performance. To clean the fan, first make sure the fan is removed. Then use a soft brush or compressed air to remove any dust or debris from the frameless cooling fan. Avoid using water or any cleaning solution directly on the frameless cooling fan as this may damage the electrical components.

8. What materials are available for frameless cooling fans?

Frameless cooling fans are often made from different materials, including plastic, aluminum, and steel. Plastic racks are lightweight and cost-effective for low-intensity cooling needs. Aluminum frameless cooling fans offer better durability and heat dissipation, making them ideal for medium to high power devices. Steel frameless cooling fans provide maximum strength and support for heavy-duty cooling fan applications.

9. Can frameless cooling fans be customized to fit specific devices?

Yes, frameless cooling fans can be customized to fit specific devices.

10. How do I determine which cooling fan bracket is compatible with my device?

Determining compatibility requires consideration of factors such as fan size, mounting holes, and equipment space constraints. Product specifications provided by the cooling fan or device manufacturer will often mention compatible bracket types. It's important to make sure the frameless cooling fan you choose meets these specifications to ensure proper installation.

11. How often should frameless cooling fans be inspected and maintained?

Regular inspection and maintenance of your frameless cooling fan is essential to ensure optimal performance and prevent potential problems. It is generally recommended to inspect brackets and related components, including screws and fasteners, every six months. Removing any dust or debris that may have accumulated on the stand will also help maintain proper airflow.

12. What are the common problems with frameless cooling fans?

There are several common problems that can occur with cooling fan brackets, including:
a) Vibration and noise: Improperly fixed brackets or loose screws can cause fan vibration and noise. Regular inspection and tightening of brackets and screws can help alleviate this problem.
b) Compatibility issues: Using incompatible or poorly designed brackets may cause alignment issues with other cooling components, reducing overall cooling efficiency.
c) Insufficient cooling: Improperly designed or incorrectly installed brackets can block airflow, prevent effective heat dissipation, and may cause the device to overheat.
