Projector application solutions

In recent years, projectors have been widely used in offices, entertainment venues, homes, schools and other places. In order to better optimize user experience, projector products continue to evolve. However, while improving functions, they must effectively exhaust heat and maintain Stable temperature to ensure work efficiency.

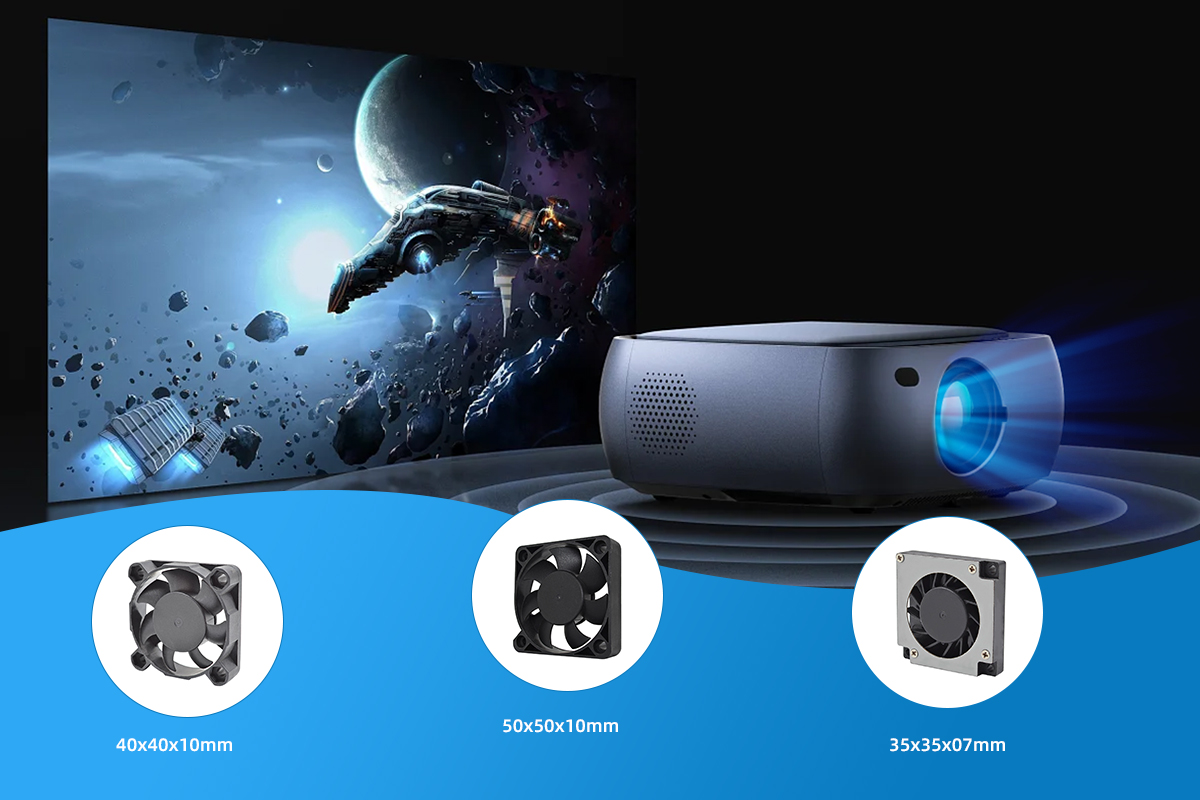

Haixinghe uses a dust-proof magnetic levitation motor to isolate fine dust, showing excellent characteristics such as thinness, high efficiency, low power consumption, low vibration, low noise, and long life. For example, the Haixing and 4010 DC fan models are suitable for projection. The high-efficiency energy-saving, high-quality heat dissipation requirements of instrument products.

40×40×10MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDH0405UG		Hydraulic	5	4.0	0.22	1.10	7000	0.18	6.19	4.52	0.18	31.7
HDH0405HG				4.0	0.17	0.85	6000	0.14	4.97	3.29	0.13	27.4
HDH0405MG				4.0	0.11	0.55	5000	0.11	4.06	2.41	0.09	23.1
HDH0405LG				4.5	0.08	0.40	4000	0.10	3.49	1.63	0.06	19.8
HDB0405UG		Ball		4.0	0.22	1.10	7000	0.18	6.19	4.52	0.18	31.7
HDB0405HG				4.0	0.17	0.85	6000	0.14	4.97	3.29	0.13	27.4
HDB0405MG				4.0	0.11	0.55	5000	0.11	4.06	2.41	0.09	23.1
HDB0405LG				4.5	0.08	0.40	4000	0.10	3.49	1.63	0.06	19.8
HDH0412EG		Hydraulic	12	7.0	0.15	1.80	8000	0.20	7.07	6.20	0.24	34.3
HDH0412UG				7.0	0.12	1.44	7000	0.18	6.19	4.52	0.18	31.7
HDH0412HG				9.0	0.10	1.20	6000	0.14	4.97	3.29	0.13	27.4
HDH0412MG				9.0	0.08	0.96	5000	0.11	4.06	2.41	0.09	23.1
HDH0412LG				9.0	0.07	0.84	4000	0.10	3.49	1.63	0.06	19.8
HDB0412EG		Ball		7.0	0.15	1.80	8000	0.20	7.07	6.20	0.24	34.3
HDB0412UG				7.0	0.12	1.44	7000	0.18	6.19	4.52	0.18	31.7
HDB0412HG				9.0	0.10	1.20	6000	0.14	4.97	3.29	0.13	27.4
HDB0412MG				9.0	0.08	0.96	5000	0.11	4.06	2.41	0.09	23.1
HDB0412LG				9.0	0.07	0.84	4000	0.10	3.49	1.63	0.06	19.8
HDH0424EG		Hydraulic	24	12.0	0.07	1.68	8000	0.20	7.07	6.20	0.24	34.3
HDH0424UG				12.0	0.06	1.44	7000	0.18	6.19	4.52	0.18	31.7
HDH0424HG				12.0	0.05	1.20	6000	0.14	4.97	3.29	0.13	27.4
HDH0424MG				12.0	0.04	0.96	5000	0.11	4.06	2.41	0.09	23.1
HDH0424LG				12.0	0.03	0.72	4000	0.10	3.49	1.63	0.06	19.8
HDB0424EG		Ball		12.0	0.07	1.68	8000	0.20	7.07	6.20	0.24	34.3
HDB0424UG				12.0	0.06	1.44	7000	0.18	6.19	4.52	0.18	31.7
HDB0424HG				12.0	0.05	1.20	6000	0.14	4.97	3.29	0.13	27.4
HDB0424MG				12.0	0.04	0.96	5000	0.11	4.06	2.41	0.09	23.1
HDB0424LG				12.0	0.03	0.72	4000	0.10	3.49	1.63	0.06	19.8

50×50×10MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDS0505EG	-A	Sleeve	5	4.0	0.30	1.50	7500	0.31	10.97	5.53	0.22	35.7
HDS0505UG				4.0	0.25	1.25	6500	0.27	9.44	4.42	0.17	29.9
HDS0505HG				4.0	0.22	1.10	6000	0.25	8.74	3.79	0.15	26.8
HDS0505MG				4.0	0.20	1.00	5500	0.23	8.17	3.31	0.13	25.3
HDS0505LG				4.0	0.16	0.80	4500	0.18	6.35	2.14	0.08	22.6
HDB0505EG	-A	Ball		4.0	0.30	1.50	7500	0.31	10.97	5.53	0.22	35.7
HDB0505UG				4.0	0.25	1.25	6500	0.27	9.44	4.42	0.17	29.9
HDB0505HG				4.0	0.22	1.10	6000	0.25	8.74	3.79	0.15	26.8
HDB0505MG				4.0	0.20	1.00	5500	0.23	8.17	3.31	0.13	25.3
HDB0505LG				4.0	0.16	0.80	4500	0.18	6.35	2.14	0.08	22.6
HDS0512EG	-A	Sleeve	12	7.0	0.24	2.88	7500	0.31	10.97	5.53	0.22	35.7
HDS0512UG				7.0	0.20	2.40	6500	0.27	9.44	4.42	0.17	29.9
HDS0512HG				7.0	0.15	1.80	6000	0.25	8.74	3.79	0.15	26.8
HDS0512MG				7.0	0.10	1.20	5500	0.23	8.17	3.31	0.13	25.3
HDS0512LG				9.0	0.08	0.96	4500	0.18	6.35	2.14	0.08	22.6
HDB0512EG	-A	Ball		7.0	0.24	2.88	7500	0.31	10.97	5.53	0.22	35.7
HDB0512UG				7.0	0.20	2.40	6500	0.27	9.44	4.42	0.17	29.9
HDB0512HG				7.0	0.15	1.80	6000	0.25	8.74	3.79	0.15	26.8
HDB0512MG				7.0	0.10	1.20	5500	0.23	8.17	3.31	0.13	25.3
HDB0512LG				9.0	0.08	0.96	4500	0.18	6.35	2.14	0.08	22.6
HDS0524EG	-A	Sleeve	24	12.0	0.15	3.60	7500	0.31	10.97	5.53	0.22	35.7
HDS0524UG				12.0	0.12	2.88	6500	0.27	9.44	4.42	0.17	29.9
HDS0524HG				12.0	0.10	2.40	6000	0.25	8.74	3.79	0.15	26.8
HDS0524MG				12.0	0.09	2.16	5500	0.23	8.17	3.31	0.13	25.3
HDS0524LG				12.0	0.06	1.44	4500	0.18	6.35	2.14	0.08	22.6
HDB0524EG	-A	Ball		12.0	0.15	3.60	7500	0.31	10.97	5.53	0.22	35.7
HDB0524UG				12.0	0.12	2.88	6500	0.27	9.44	4.42	0.17	29.9
HDB0524HG				12.0	0.10	2.40	6000	0.25	8.74	3.79	0.15	26.8
HDB0524MG				12.0	0.09	2.16	5500	0.23	8.17	3.31	0.13	25.3
HDB0524LG				12.0	0.06	1.44	4500	0.18	6.35	2.14	0.08	22.6

35×35×07MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HBH3505HQ		Hydraulic	5	4.0	0.20	1.00	7500	0.04	1.26	4.17	0.16	22.3
HBH3505MQ				4.0	0.15	0.75	6500	0.03	1.12	3.28	0.13	18.7
HBH3505LQ				4.0	0.10	0.50	5500	0.02	0.87	2.60	0.10	15.6
HBH3512HQ		Hydraulic	12	6.0	0.13	1.56	7500	0.04	1.26	4.17	0.16	22.3
HBH3512MQ				6.0	0.09	1.08	6500	0.03	1.12	3.28	0.13	18.7
HBH3512LQ				6.0	0.07	0.84	5500	0.02	0.87	2.60	0.10	15.6
