3D printer application solutions

3D printer is a technological existence. It can generate objects with shapes based on computer graphics data. But despite such a 3D printer, it still needs to be improved. The importance of the cooling fan during the entire working process of a 3D printer is also very important. The 3D printer has a preheating process. When the nozzle temperature reaches the temperature that can dissolve the material for normal printing, the speed of the radiator fan during this process will be based on the temperature. Adjustment. When the printing is completed, it needs to be cooled, and the fan speed of the radiator will be high at this stage.

Haixinghe is a manufacturer specializing in the production of cooling fans. Product quality assurance is the competitiveness of the company. Our technicians can create a cooling fan suitable for your product according to your parameter requirements, making your product more competitive in the market.

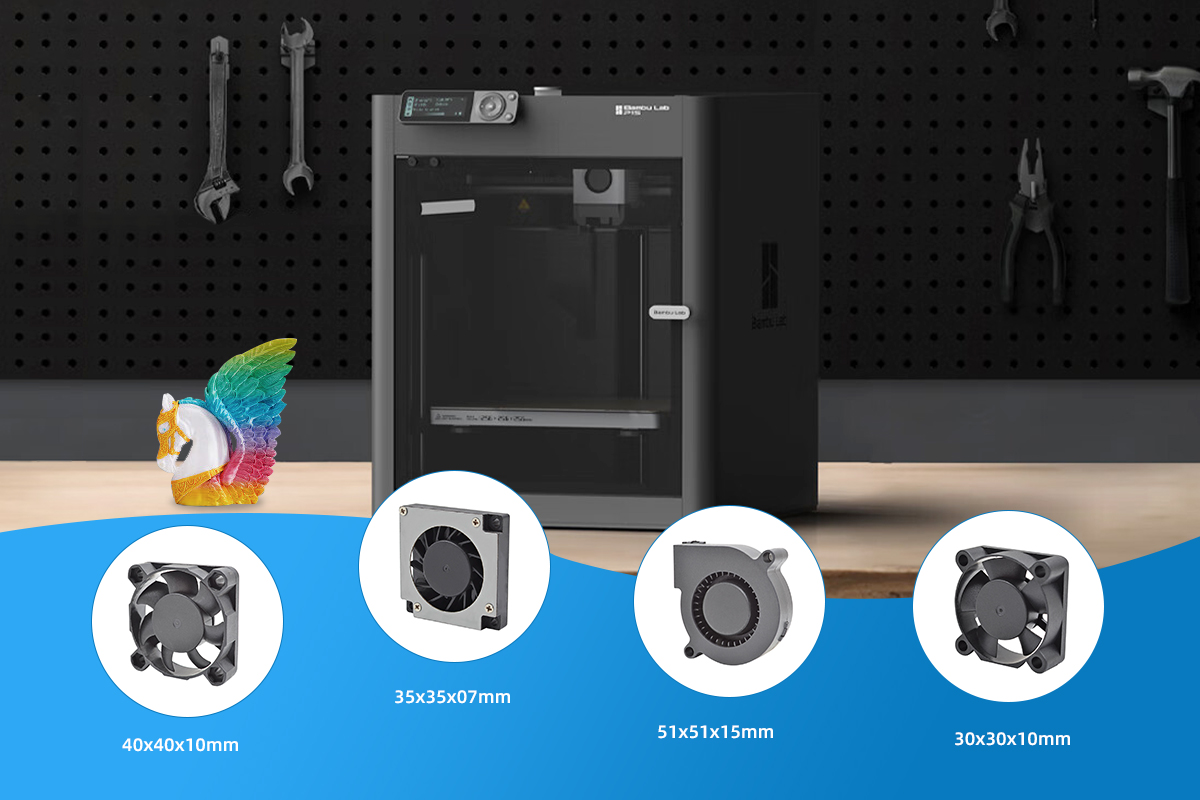

40×40×10MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDH0405UG		Hydraulic	5	4.0	0.22	1.10	7000	0.18	6.19	4.52	0.18	31.7
HDH0405HG				4.0	0.17	0.85	6000	0.14	4.97	3.29	0.13	27.4
HDH0405MG				4.0	0.11	0.55	5000	0.11	4.06	2.41	0.09	23.1
HDH0405LG				4.5	0.08	0.40	4000	0.10	3.49	1.63	0.06	19.8
HDB0405UG		Ball		4.0	0.22	1.10	7000	0.18	6.19	4.52	0.18	31.7
HDB0405HG				4.0	0.17	0.85	6000	0.14	4.97	3.29	0.13	27.4
HDB0405MG				4.0	0.11	0.55	5000	0.11	4.06	2.41	0.09	23.1
HDB0405LG				4.5	0.08	0.40	4000	0.10	3.49	1.63	0.06	19.8
HDH0412EG		Hydraulic	12	7.0	0.15	1.80	8000	0.20	7.07	6.20	0.24	34.3
HDH0412UG				7.0	0.12	1.44	7000	0.18	6.19	4.52	0.18	31.7
HDH0412HG				9.0	0.10	1.20	6000	0.14	4.97	3.29	0.13	27.4
HDH0412MG				9.0	0.08	0.96	5000	0.11	4.06	2.41	0.09	23.1
HDH0412LG				9.0	0.07	0.84	4000	0.10	3.49	1.63	0.06	19.8
HDB0412EG		Ball		7.0	0.15	1.80	8000	0.20	7.07	6.20	0.24	34.3
HDB0412UG				7.0	0.12	1.44	7000	0.18	6.19	4.52	0.18	31.7
HDB0412HG				9.0	0.10	1.20	6000	0.14	4.97	3.29	0.13	27.4
HDB0412MG				9.0	0.08	0.96	5000	0.11	4.06	2.41	0.09	23.1
HDB0412LG				9.0	0.07	0.84	4000	0.10	3.49	1.63	0.06	19.8
HDH0424EG		Hydraulic	24	12.0	0.07	1.68	8000	0.20	7.07	6.20	0.24	34.3
HDH0424UG				12.0	0.06	1.44	7000	0.18	6.19	4.52	0.18	31.7
HDH0424HG				12.0	0.05	1.20	6000	0.14	4.97	3.29	0.13	27.4
HDH0424MG				12.0	0.04	0.96	5000	0.11	4.06	2.41	0.09	23.1
HDH0424LG				12.0	0.03	0.72	4000	0.10	3.49	1.63	0.06	19.8
HDB0424EG		Ball		12.0	0.07	1.68	8000	0.20	7.07	6.20	0.24	34.3
HDB0424UG				12.0	0.06	1.44	7000	0.18	6.19	4.52	0.18	31.7
HDB0424HG				12.0	0.05	1.20	6000	0.14	4.97	3.29	0.13	27.4
HDB0424MG				12.0	0.04	0.96	5000	0.11	4.06	2.41	0.09	23.1
HDB0424LG				12.0	0.03	0.72	4000	0.10	3.49	1.63	0.06	19.8

35×35×07MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HBH3505HQ		Hydraulic	5	4.0	0.20	1.00	7500	0.04	1.26	4.17	0.16	22.3
HBH3505MQ				4.0	0.15	0.75	6500	0.03	1.12	3.28	0.13	18.7
HBH3505LQ				4.0	0.10	0.50	5500	0.02	0.87	2.60	0.10	15.6
HBH3512HQ		Hydraulic	12	6.0	0.13	1.56	7500	0.04	1.26	4.17	0.16	22.3
HBH3512MQ				6.0	0.09	1.08	6500	0.03	1.12	3.28	0.13	18.7
HBH3512LQ				6.0	0.07	0.84	5500	0.02	0.87	2.60	0.10	15.6

51×51×15MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HBS0505HD	-A	Sleeve	5	4.0	0.33	1.65	5500	0.09	3.07	14.05	0.55	32.6
HBS0505MD				4.0	0.28	1.40	4500	0.07	2.57	10.68	0.42	28.2
HBS0505LD				4.0	0.14	0.70	3500	0.05	1.92	5.76	0.23	21.9
HBB0505HD	-A	Ball		4.0	0.33	1.65	5500	0.09	3.07	14.05	0.55	32.6
HBB0505MD				4.0	0.28	1.40	4500	0.07	2.57	10.68	0.42	28.2
HBB0505LD				4.0	0.14	0.70	3500	0.05	1.92	5.76	0.23	21.9
HBS0512HD		Sleeve	12	5.0	0.18	2.16	5500	0.09	3.07	14.05	0.55	32.6
HBS0512MD				5.0	0.12	1.44	4500	0.07	2.57	10.68	0.42	28.2
HBS0512LD				5.0	0.08	0.96	3500	0.05	1.92	5.76	0.23	21.9
HBB0512UD		Ball		5.0	0.23	2.76	6500	0.10	3.69	18.24	0.72	36.3
HBB0512HD				5.0	0.18	2.16	5500	0.09	3.07	14.05	0.55	32.6
HBB0512MD				5.0	0.12	1.44	4500	0.07	2.57	10.68	0.42	28.2
HBB0512LD				5.0	0.08	0.96	3500	0.05	1.92	5.76	0.23	21.9
HBS0524HD		Sleeve	24	12.0	0.12	2.88	5500	0.09	3.07	14.05	0.55	32.6
HBS0524MD				12.0	0.08	1.92	4500	0.07	2.57	10.68	0.42	28.2
HBS0524LD				12.0	0.05	1.20	3500	0.05	1.92	5.76	0.23	21.9
HBB0524UD		Ball		12.0	0.16	3.84	6500	0.10	3.69	18.24	0.72	36.3
HBB0524HD				12.0	0.12	2.88	5500	0.09	3.07	14.05	0.55	32.6
HBB0524MD				12.0	0.08	1.92	4500	0.07	2.57	10.68	0.42	28.2
HBB0524LD				12.0	0.05	1.20	3500	0.05	1.92	5.76	0.23	21.9

30×30×10MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDS0305HG		Sleeve	5	4.0	0.30	1.50	9000	0.09	3.03	3.43	0.14	26.6
HDS0305MG				4.0	0.18	0.90	7500	0.08	2.72	2.42	0.10	23.6
HDS0305LG				4.0	0.12	0.60	6000	0.05	1.76	1.34	0.05	19.8
HDB0305HG		Ball		4.0	0.30	1.50	9000	0.09	3.03	3.43	0.14	26.6
HDB0305MG				4.0	0.18	0.90	7500	0.08	2.72	2.42	0.10	23.6
HDB0305LG				4.0	0.12	0.60	6000	0.05	1.76	1.34	0.05	19.8
HDS0312HG		Sleeve	12	9.0	0.10	1.20	9000	0.09	3.03	3.43	0.14	26.6
HDS0312MG				9.0	0.08	0.96	7500	0.08	2.72	2.42	0.10	23.6
HDS0312LG				9.0	0.06	0.72	6000	0.05	1.76	1.34	0.05	19.8
HDB0312EG		Ball		9.0	0.21	2.52	12000	0.12	4.28	5.74	0.23	34.0
HDB0312UG				9.0	0.13	1.56	10500	0.10	3.42	4.28	0.17	31.4
HDB0312HG				9.0	0.10	1.20	9000	0.09	3.03	3.43	0.14	26.6
HDB0312MG				9.0	0.08	0.96	7500	0.08	2.72	2.42	0.10	23.6
HDB0312LG				9.0	0.06	0.72	6000	0.05	1.76	1.34	0.05	19.8
HDS0324HG		Sleeve	24	12.0	0.07	1.68	9000	0.09	3.03	3.43	0.14	26.6
HDS0324MG				12.0	0.06	1.44	7500	0.08	2.72	2.42	0.10	23.6
HDS0324LG				12.0	0.04	0.96	6000	0.05	1.76	1.34	0.05	19.8
HDB0324HG		Ball		12.0	0.07	1.68	9000	0.09	3.03	3.43	0.14	26.6
HDB0324MG				12.0	0.06	1.44	7500	0.08	2.72	2.42	0.10	23.6
HDB0324LG				12.0	0.04	0.96	6000	0.05	1.76	1.34	0.05	19.8
