Stage lighting cooling application solution

With the continuous expansion of the lighting market, people's requirements for stage lighting tend to have characteristic lighting such as: "energy saving, bright colors, easy to use, long life" and other characteristics are important choices for users.

While the stage lights are shining, the stage lights will naturally heat up, in order to make the stage lights work normally. Some luminaire manufacturers will use the method of attaching a drawn aluminum profile to the aluminum substrate and adding a cooling fan to heat the heat. And the cooling fan can be adjusted by software, so that the temperature of the LED is always controlled within a safe range.

Haixinghe Industrial Co., Ltd. provides many stage lighting industry manufacturers with technical experience and production capacity on stage lighting heat dissipation, and solves heat dissipation problems for users. Let your products have safety, long-running, low-power cooling products.

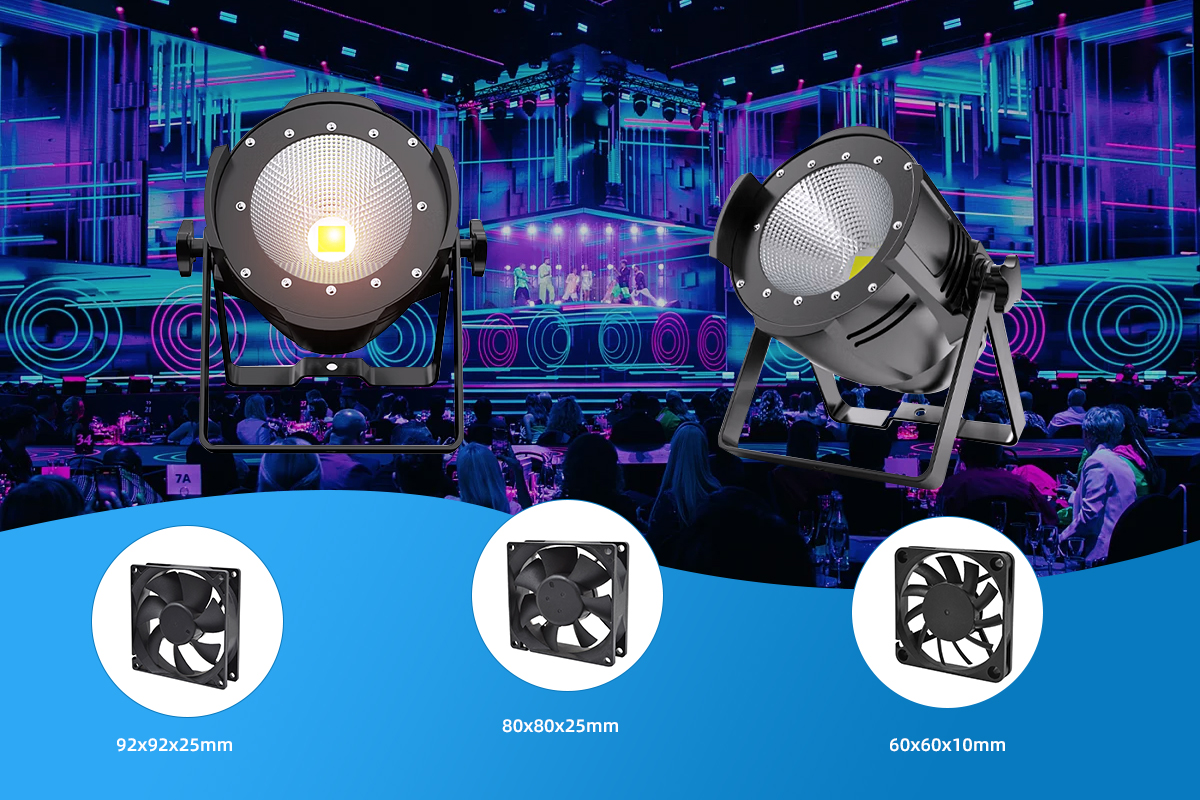

Stage lighting cooling application solution

92×92×25MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDH0905HA	-A	Hydraulic	5	4.0	0.30	1.50	2800	1.15	40.79	3.51	0.14	35.5
HDH0905MA				4.0	0.25	1.25	2400	1.00	35.34	2.64	0.10	31.3
HDH0905LA				4.0	0.19	0.95	2000	0.85	29.89	1.91	0.08	28.4
HDB0905HA	-A	Ball		4.0	0.30	1.50	2800	1.15	40.79	3.51	0.14	35.5
HDB0905MA				4.0	0.25	1.25	2400	1.00	35.34	2.64	0.10	31.3
HDB0905LA				4.0	0.19	0.95	2000	0.85	29.89	1.91	0.08	28.4
HDH0912HA		Hydraulic	12	6.0	0.23	2.76	2800	1.15	40.79	3.51	0.14	35.5
HDH0912MA				6.0	0.19	2.28	2400	1.00	35.34	2.64	0.10	31.3
HDH0912LA				9.0	0.16	1.92	2000	0.85	29.89	1.91	0.08	28.4
HDB0912VA	-A	Ball		6.0	0.45	5.40	4200	1.77	62.52	7.06	0.28	47.5
HDB0912EA	-A			6.0	0.40	4.80	3800	1.53	53.96	5.55	0.22	44.3
HDB0912UA	-A			6.0	0.30	3.60	3200	1.32	46.71	4.28	0.17	39.7
HDB0912HA				6.0	0.23	2.76	2800	1.15	40.79	3.51	0.14	35.5
HDB0912MA				6.0	0.19	2.28	2400	1.00	35.34	2.64	0.10	31.3
HDB0912LA				9.0	0.16	1.92	2000	0.85	29.89	1.91	0.08	28.4
HDH0924HA		Hydraulic	24	12.0	0.11	2.64	3000	1.26	44.46	3.90	0.15	38.7
HDH0924MA				12.0	0.07	1.68	2500	1.04	36.84	2.80	0.11	33.0
HDH0924LA				18.0	0.05	1.20	2000	0.85	29.89	1.91	0.08	28.4
HDB0924VA	-A	Ball		12.0	0.25	6.00	4800	2.02	71.32	8.88	0.35	51.5
HDB0924EA	-A			12.0	0.18	4.32	4000	1.63	57.49	6.21	0.24	46.2
HDB0924UA	-A			12.0	0.13	3.12	3500	1.42	50.28	4.95	0.19	41.7
HDB0924HA				12.0	0.11	2.64	3000	1.26	44.46	3.90	0.15	38.7
HDB0924MA				12.0	0.07	1.68	2500	1.04	36.84	2.80	0.11	33.0
HDB0924LA				18.0	0.05	1.20	2000	0.85	29.89	1.91	0.08	28.4
HDH0948EA	-A	Hydraulic	48	24.0	0.15	7.20	3800	1.53	53.96	5.55	0.22	44.3
HDH0948UA	-A			24.0	0.11	5.28	3200	1.32	46.71	4.28	0.17	39.7
HDH0948HA				24.0	0.07	3.36	2800	1.15	40.79	3.51	0.14	35.5
HDH0948MA				24.0	0.05	2.40	2400	1.00	35.34	2.64	0.10	31.3
HDH0948LA				24.0	0.05	2.40	2000	0.85	29.89	1.91	0.08	28.4
HDB0948EA	-A	Ball		24.0	0.15	7.20	3800	1.53	53.96	5.55	0.22	44.3
HDB0948UA	-A			24.0	0.11	5.28	3200	1.32	46.71	4.28	0.17	39.7
HDB0948HA				24.0	0.07	3.36	2800	1.15	40.79	3.51	0.14	35.5
HDB0948MA				24.0	0.05	2.40	2400	1.00	35.34	2.64	0.10	31.3
HDB0948LA				24.0	0.05	2.40	2000	0.85	29.89	1.91	0.08	28.4

80×80×25MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDH0805UA	-A	Hydraulic	5	4.0	0.60	3.00	3500	1.16	41.09	5.44	0.21	39.4
HDH0805HA	-A			4.0	0.45	2.25	3000	0.97	34.21	4.04	0.16	35.5
HDH0805MA				4.0	0.25	1.25	2500	0.83	29.24	2.82	0.11	31.3
HDH0805LA				4.0	0.20	1.00	2000	0.74	26.23	2.17	0.09	29.7
HDB0805UA	-A	Ball		4.0	0.60	3.00	3500	1.16	41.09	5.44	0.21	39.4
HDB0805HA	-A			4.0	0.45	2.25	3000	0.97	34.21	4.04	0.16	35.5
HDB0805MA				4.0	0.25	1.25	2500	0.83	29.24	2.82	0.11	31.3
HDB0805LA				4.0	0.20	1.00	2000	0.74	26.23	2.17	0.09	29.7
HDH0812HA		Hydraulic	12	5.0	0.23	2.76	3000	0.97	34.21	4.04	0.16	35.5
HDH0812MA				5.0	0.16	1.92	2500	0.83	29.24	2.82	0.11	31.3
HDH0812LA				5.0	0.09	1.08	2000	0.74	26.23	2.17	0.09	29.7
HDB0812VA	-A	Ball		5.0	0.55	6.60	5000	1.66	58.54	10.34	0.41	48.1
HDB0812EA	-A			5.0	0.38	4.56	4000	1.32	46.57	6.82	0.27	40.7
HDB0812UA	-A			5.0	0.28	3.36	3500	1.16	41.09	5.44	0.21	39.4
HDB0812HA				5.0	0.23	2.76	3000	0.97	34.21	4.04	0.16	35.5
HDB0812MA				5.0	0.16	1.92	2500	0.83	29.24	2.82	0.11	31.3
HDB0812LA				5.0	0.09	1.08	2000	0.74	26.23	2.17	0.09	29.7
HDH0824HA		Hydraulic	24	12.0	0.14	3.36	3000	0.97	34.21	4.04	0.16	35.5
HDH0824MA				12.0	0.09	2.16	2500	0.83	29.24	2.82	0.11	31.3
HDH0824LA				12.0	0.06	1.44	2000	0.74	26.23	2.17	0.09	29.7
HDB0824EA	-A	Ball		12.0	0.28	6.72	4000	1.32	46.57	6.82	0.27	40.7
HDB0824UA	-A			12.0	0.18	4.32	3500	1.16	41.09	5.44	0.21	39.4
HDB0824HA				12.0	0.14	3.36	3000	0.97	34.21	4.04	0.16	35.5
HDB0824MA				12.0	0.09	2.16	2500	0.83	29.24	2.82	0.11	31.3
HDB0824LA				12.0	0.06	1.44	2000	0.74	26.23	2.17	0.09	29.7
HDH0848HA	-A	Hydraulic	48	24.0	0.08	3.84	3000	1.01	35.57	4.28	0.17	35.5
HDH0848MA	-A			24.0	0.06	2.88	2500	0.83	29.24	3.26	0.13	31.3
HDH0848LA	-A			24.0	0.04	1.92	2000	0.69	24.47	2.27	0.09	29.7
HDB0848EA	-A	Ball		24.0	0.10	4.80	4000	1.32	46.57	6.82	0.27	40.7
HDB0848UA	-A			24.0	0.09	4.32	3500	1.16	41.09	5.44	0.21	39.4
HDB0848HA	-A			24.0	0.08	3.84	3000	0.97	34.21	4.04	0.16	35.5
HDB0848MA	-A			24.0	0.06	2.88	2500	0.83	29.24	2.82	0.11	31.3
HDB0848LA	-A			24.0	0.04	1.92	2000	0.74	26.23	2.17	0.09	29.7

60×60×10MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDS0605HG		Sleeve	5	4.0	0.28	1.40	4000	0.43	15.09	2.31	0.09	29.2
HDS0605MG				4.0	0.25	1.25	3500	0.38	13.29	1.81	0.07	26.8
HDS0605LG				4.0	0.20	1.00	3000	0.31	10.84	1.26	0.05	23.0
HDB0605HG		Ball		4.0	0.28	1.40	4000	0.43	15.09	2.31	0.09	29.2
HDB0605MG				4.0	0.25	1.25	3500	0.38	13.29	1.81	0.07	26.8
HDB0605LG				4.0	0.20	1.00	3000	0.31	10.84	1.26	0.05	23.0
HDS0612HG		Sleeve	12	6.0	0.22	2.64	4000	0.43	15.09	2.31	0.09	29.2
HDS0612MG				6.0	0.18	2.16	3500	0.38	13.29	1.81	0.07	26.8
HDS0612LG				6.0	0.16	1.92	3000	0.31	10.84	1.26	0.05	23.0
HDB0612HG		Ball		6.0	0.22	2.64	4000	0.43	15.09	2.31	0.09	29.2
HDB0612MG				6.0	0.18	2.16	3500	0.38	13.29	1.81	0.07	26.8
HDB0612LG				6.0	0.16	1.92	3000	0.31	10.84	1.26	0.05	23.0
